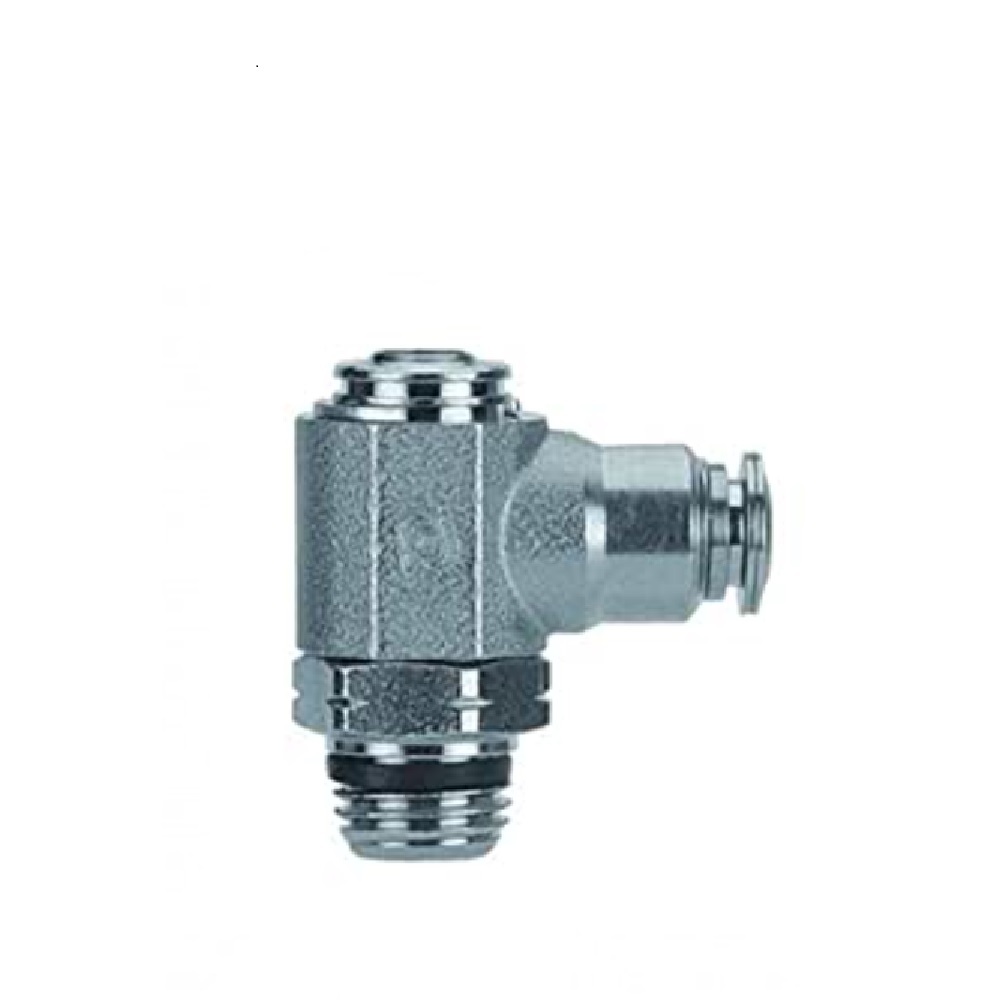

Item # 89953-53-32
AIGNEP NP BRASS FLOW CONTROL
5/32" TUBE X 10/32" UNF MALE METER OUT, SCREW ADJ
- $12.90 / EA
- Manufacturer: AIGNEP USA
- UM: EA
AIGNEP 89953 - NICKEL PLATED PUSH TO CONNECT FLOW CONTROL
- INCH TUBE FLOW CONTROL (OUT)
- PRESSURE RATING: VACUUM-290 PSI
- TEMPERATURE RANGE: 0-176? F
- TUBING COMPATIBILITY: NYLON, POLYETHYLENE, POLYURETHANE, COPPER
- MEDIA: COMPRESSED AIR
- BODY: NICKEL PLATED BRASS
- THREAD SEAL: NBR 70
- THREAD TYPE: UNIFIT/SWIFTFIT
NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM
Click image to enlarge

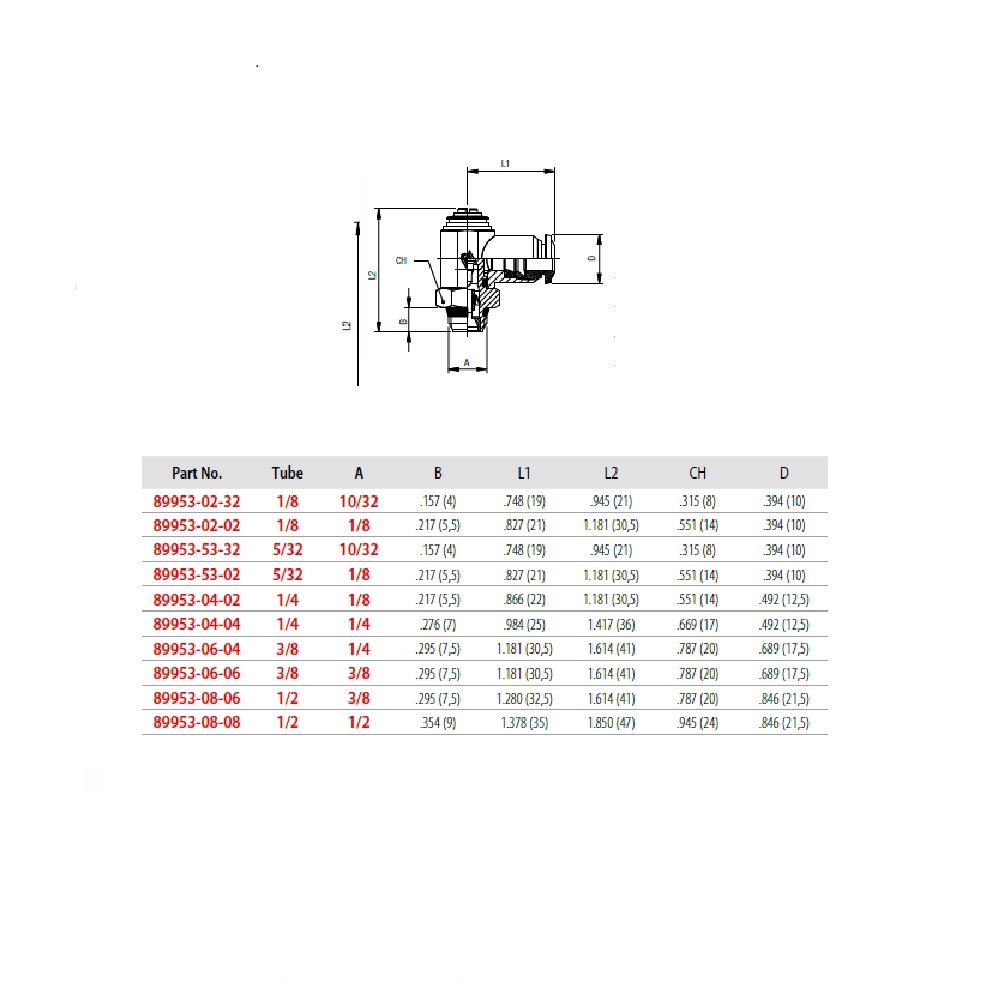

Specifications
| PORT SIZE | 10/32" UNIFIED |
| MALE/FEMALE | MALE |
| TUBE SIZE | 5/32" (4MM) |
| TYPE | METER OUT |
| OPTIONS | SCREW |
Item # 89953-53-32
AIGNEP NP BRASS FLOW CONTROL
5/32" TUBE X 10/32" UNF MALE METER OUT, SCREW ADJ
Documents
Alternate Products
0FPRN5
- NUMATICS/AVENTICS FLOW CONTROL<BR>4MM TUBE X 10/32" UNF MALE METER OUT, SCREW ADJ
- $37.18 / EA
0FPTN5
- NUMATICS/AVENTICS FLOW CONTROL<BR>4MM TUBE X 10/32" UNF MALE METER OUT, KNOB ADJ
- $112.19 / EA
INB135C-532-036
- NUMATICS/AVENTICS NP BRASS FLOW CONTROL<BR>5/32" TUBE X 10/32" UNF MALE METER OUT, SCREW ADJ
- $19.75 / EA
INB136C-532-036
- NUMATICS/AVENTICS NP BRASS FLOW CONTROL<BR>5/32" TUBE X 10/32" UNF MALE METER OUT, KNOB ADJ
- $20.02 / EA
JSC5/32-U10AU
- PISCO PLASTIC FLOW CONTROL<BR>5/32" TUBE X 10/32" UNF MALE METER OUT, KNOB ADJ
- $4.20 / EA
R432002367
- NUMATICS/AVENTICS PLASTIC FLOW CONTROL<BR>5/32" TUBE X 10/32" UNF MALE METER OUT, KNOB ADJ (OVAL)
- $5.72 / EA
×
