Item # 031SA4252000030

NUMATICS/AVENTICS SOLENOID VALVE/MANIFOLD
MK3 SERIES 4/2 SPR RTN 120VAC 1/8" NPT, DIN PLUG, SC

  • $112.05 / EA
  • UM: EA
THE MARK 3 SERIES OFFERS HIGH FLOW IN A MINIATURE VALVE DESIGN. THE MARK 3 LINE IS AVAILABLE WITH 10-32 OR 1/8 PORTING IN EITHER SUB-BASE OR MANIFOLD MOUNTING, SANDWICH SPEED CONTROL AND SANDWICH PRESSURE REGULATORS.

STANDARD SPECIFICATIONS FOR MARK 3, SPA 3, AND PA 3 SERIES VALVE:

  • CV: 0.35
  • PORT SIZES: 1/8 NPTF & G, 10-32, M5
  • 5 PORTED, 2 AND 3 POSITION, 4-WAY, SPOOL & SLEEVE
  • FLOW CAPACITY: 8.34 TO 16.21 SCFM @ 80 PSIG / 177 TO 345 NI/M @ 6 BAR
  • OPERATING PRESSURE RANGE: 28" HG. VACUUM TO 150 PSIG / VACUUM TO 10 BAR
  • PILOT PRESSURE RANGE: 20 TO 100 PSIG / 2 POSITION DETENTED 15 TO 100 PSIG
  • TEMPERATURE RANGE (AMBIENT): -10?F TO +115?F (-23?C TO +46?C) / AIR PILOT +200?F (+93?C)
FEATURES FOR MARK 3, SPA 3, AND PA 3 SERIES VALVE:
  • DIRECT SOLENOID, AIR PILOT OR SOLENOID AIR PILOT ACTUATED
  • DIN PLUG-IN SOLENOID WITH INDICATOR LIGHT
  • UNLUBRICATED OR LUBRICATED SERVICE
  • INTEGRAL SPEED CONTROL AVAILABLE
  • INTEGRAL REGULATORS AVAILABLE
  • NEMA 4/IP65

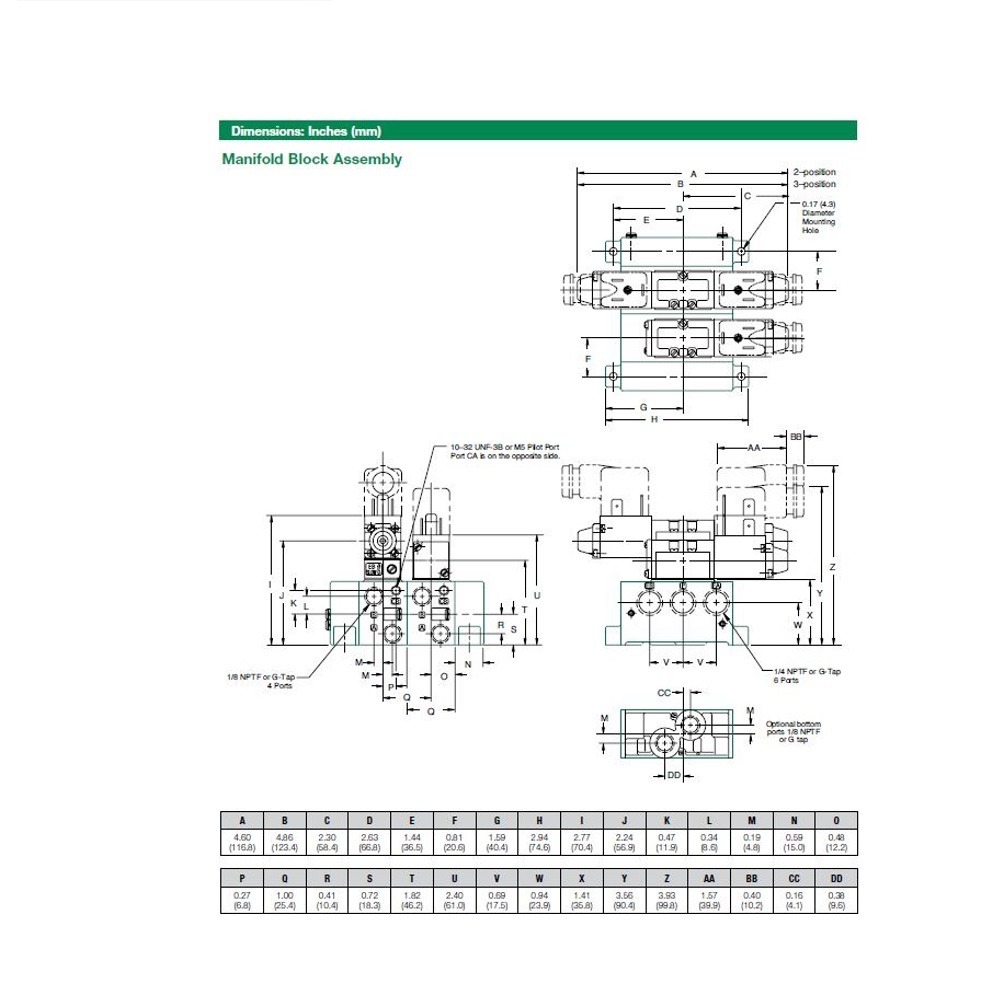

CAD FILES:
CLICK HERE

NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

031SA4252000030 NUMATICS/AVENTICS SOLENOID VALVE/MANIFOLD<BR>MK3 SERIES 4/2 SPR RTN 120VAC 1/8" NPT, DIN PLUG, SC
031SA4252000030 NUMATICS/AVENTICS SOLENOID VALVE/MANIFOLD<BR>MK3 SERIES 4/2 SPR RTN 120VAC 1/8" NPT, DIN PLUG, SC
031SA4252000030 NUMATICS/AVENTICS SOLENOID VALVE/MANIFOLD<BR>MK3 SERIES 4/2 SPR RTN 120VAC 1/8" NPT, DIN PLUG, SC
Click image to enlarge
031SA4252000030 NUMATICS/AVENTICS SOLENOID VALVE/MANIFOLD<BR>MK3 SERIES 4/2 SPR RTN 120VAC 1/8" NPT, DIN PLUG, SC
031SA4252000030 NUMATICS/AVENTICS SOLENOID VALVE/MANIFOLD<BR>MK3 SERIES 4/2 SPR RTN 120VAC 1/8" NPT, DIN PLUG, SC
031SA4252000030 NUMATICS/AVENTICS SOLENOID VALVE/MANIFOLD<BR>MK3 SERIES 4/2 SPR RTN 120VAC 1/8" NPT, DIN PLUG, SC

Specifications

PORT SIZE 1/8"
PORT TYPE NPT
CONTROL FUNCTION SINGLE DIRECT SOLENOID
VALVE FUNCTION 4 WAY 2 POSITION - (5/2) SPRING RETURN
VOLTAGE 120 VAC
WIRING DIN PLUG-IN
SPEED CONTROL YES
SPECIAL OPTION NONE

Item # 031SA4252000030

NUMATICS/AVENTICS SOLENOID VALVE/MANIFOLD
MK3 SERIES 4/2 SPR RTN 120VAC 1/8" NPT, DIN PLUG, SC

  • $112.05 / EA
    • IF OUT OF STOCK, STD LEAD-TIME: 10-15 BUS DAYS
    • Log in to see if custom discounts apply
