STANDARD SPECIFICATIONS:

• CV: 1.0
• PORT SIZES: 1/8 & 1/4 NPTF

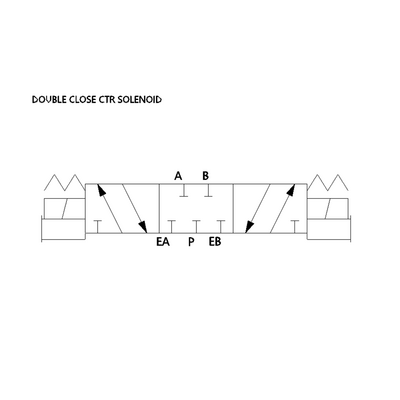

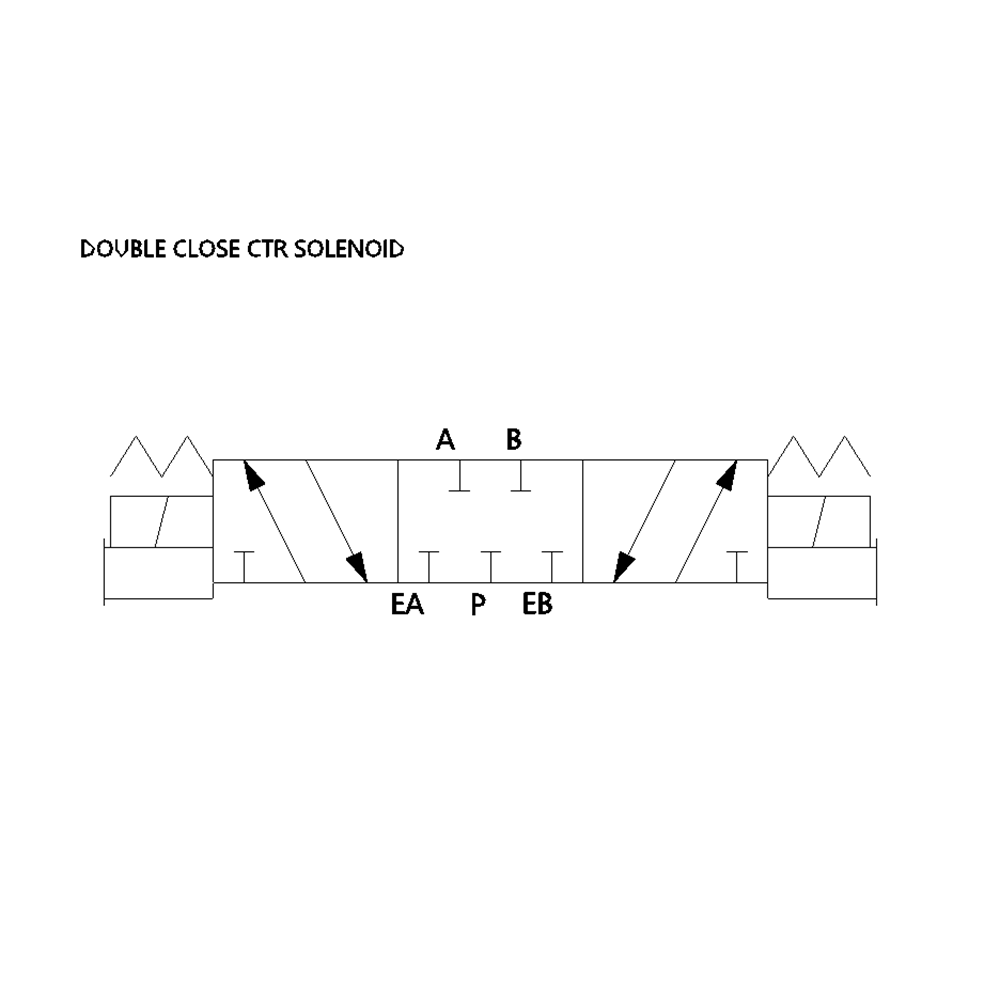

• 5 PORTED, 2 AND 3 POSITION, 4-WAY, SPOOL & SLEEVE
• FLOW CAPACITY: 46 SCFM @ 80 PSIG / 985 NI/M @ 6 BAR
• OPERATING PRESSURE RANGE: 28" HG. VACUUM TO 150 PSIG / VACUUM TO 10 BAR
• TEMPERATURE RANGE (AMBIENT): -10?F TO +115?F / -23?C TO +46?C

FEATURES:

• DIRECT SOLENOID ACTUATED
• COMPLY WITH AUTOMOTIVE INTERCHANGEABLE STANDARDS

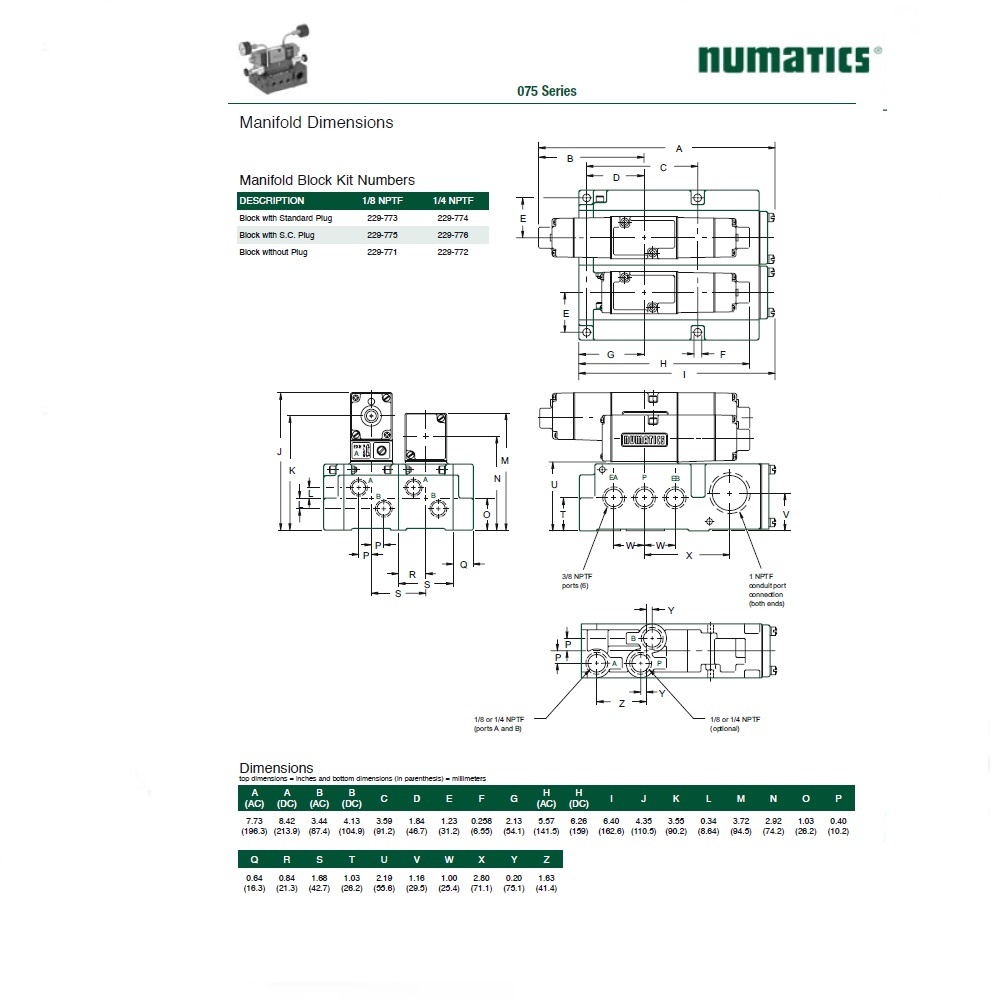

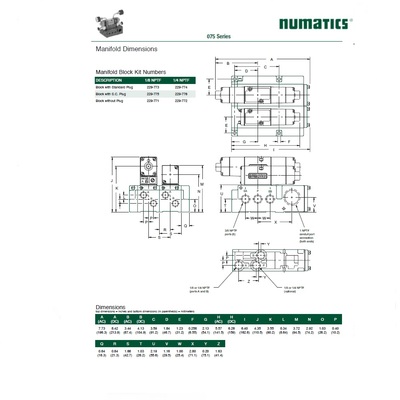

• SUB-BASE MOUNTED
• PLUG IN SOLENOID WITH INDICATOR LIGHT
• FOR LUBRICATED OR UNLUBRICATED SERVICE
• INTEGRAL REGULATORS AVAILABLE
• INTEGRAL SPEED CONTROL AVAILABLE
• NEMA 4/IP65
