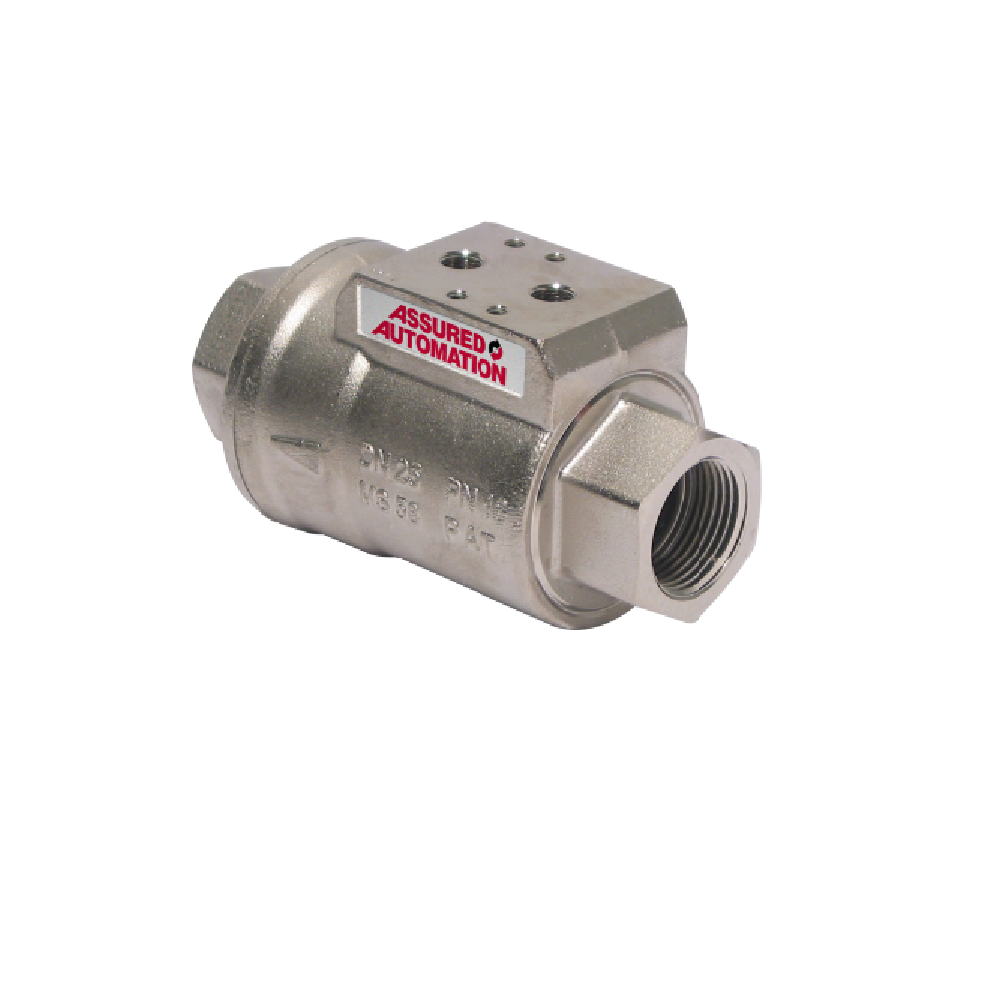

THE ASSURED AUTOMATION VA SERIES COMBINES A PNEUMATIC ACTUATOR AND VALVE INTO ONE BODY, ELIMINATING PACKING GLANDS, ACTUATORS, AND MOUNTING KITS. THERE ARE NO EXPOSED MOVING PARTS, ELIMINATING PINCH POINTS AND INCREASING OPERATOR SAFETY. SINCE THE ACTUATOR IS PART OF THE VALVE, COSTS ARE GREATLY REDUCED WHEN COMPARED TO STANDARD ACTUATED VALVES.

• PRESSURE RANGE: 29 INHG VACUUM TO 150 PSI
• TEMPERATURE RANGE: BUNA-N SEALS = -4?F TO 176?F, EPDM, VITON SEALS = -4?F TO 302?F
• NICKEL PLATED BRASS BODY

FEATURES:

• INTEGRATED PNEUMATIC ACTUATOR
• NAMUR SOLENOID MOUNTING PAD
• COMPACT ASSEMBLY
• FAST VALVE ACTUATION
• HIGH CV (FLOW COEFFICIENT)
• HIGH CYCLE-LIFE
• COMPETITIVE PRICE
• COMPLETE ACCESSORY EQUIPMENT

OPTIONS:

• AVAILABLE WITH NORMALLY CLOSED FUNCTION: VAC SERIES, NORMALLY OPEN FUNCTION: VAO SERIES AND DOUBLE ACTING FUNCTION: VAD SERIES
• AVAILABLE WITH OR WITHOUT THE NAMUR VALVE (24 VDC OR 120 VAC)
• AVAILABLE WITH BUNA, VITON OR EPDM SEALS

TYPICAL APPLICATIONS:

• AIR DRYING EQUIPMENT
• POLLUTION CONTROL EQUIPMENT
• PROCESS CONTROL APPLICATIONS
• LAUNDRY EQUIPMENT
• TEXTILE DYEING AND DRYING
• BOTTLING AND DISPENSING EQUIPMENT
• INK AND PAINT DISPENSING
• INDUSTRIAL COMPRESSORS
