Item # 10B-4545-0
MODULAR SOLUTIONS EXTRUDED ELITE PROFILE
45MM X 45MM
- $22.00 / M
- Manufacturer: MODULAR SOLUTIONS
- UM: M
- Weight: 3.22
MODULAR SOLUTIONS EXTRUDED PROFILE-45MM X 45MM-ELITE SERIES
| FEATURES | |
|---|---|
| 45MM X 45MM PROFILE | |
| STANDARD 8MM T SLOT | |
| BLACK COAT ANODIZATION | |
| MATERIAL: 6063 T66 ANODIZED ALUMINUM |
| TECHNICAL | |
|---|---|
| WEIGHT (PER METER): | 3.22 LBS. / 1.46 KG. |
| IX DIM | 9.69 CM4 |
| IY DIM | 9.69 CM4 |
| 6063 T66 SPECIFIC WEIGHT: | 2.75 G/CM³ |
| MODULUS OF ELASTICITY: | E: 70000 N/MM2 |
| SHEAR MODULUS: | G: 27000 N/MM2 |
| EXPANSION HARDNESS: | CA. 75 HB 2.5 / 187.5 |
| ANODIZATION LAYER THICKNESS: | CA. 10 UM |
| 6063 T66 MECHANICAL PROPERTIES | |
|---|---|
| FATIGUE ENDURANCE LIMIT [MPA]: | 68.9 |
| YIELD STRENGTH [MPA]: | 214 |
| TENSILE STRENGTH [MPA]: | 241 |
| SHEER STRENGTH [MPA]: | 152 |
| HARDNESS BRINELL HB: | 73 |
| INFO | |
|---|---|
| USE END CAPS | 60-010-2 (LT GRAY) 60-010-1 (BLACK) 60-010-0 (GRAY) 60-010-5 (ALUMINUM) |
| SPEEDLOCKS & HIDDEN PROFILE FASTENERS | 45 SERIES |
| BASIC STRUCTURAL PROFILE FOR GENERAL PURPOSE | |
| DOES NOT INCLUDE MOUNTING HARDWARE | |
PROFILE # 10-4545-0 IS PART OF The 45 SERIES ALUMINUM PROFILE SYSTEM WHICH IS GREAT FOR LIGHT TO HEAVY DUTY APPLICATIONS AND FOR MANY GENERAL-PURPOSE USES.
PLEASE SEE THE CATALOG FOR MORE INFORMATION
THIS PROFILE CAN BE CUT TO LENGTH. SIMPLY ENTER YOUR LENGTH IN METERS IN THE BOX TO THE RIGHT
NOT FINDING WHAT YOU NEED?

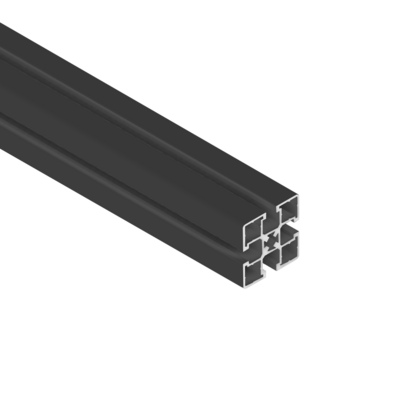

Click image to enlarge
Item # 10B-4545-0
MODULAR SOLUTIONS EXTRUDED ELITE PROFILE
45MM X 45MM
