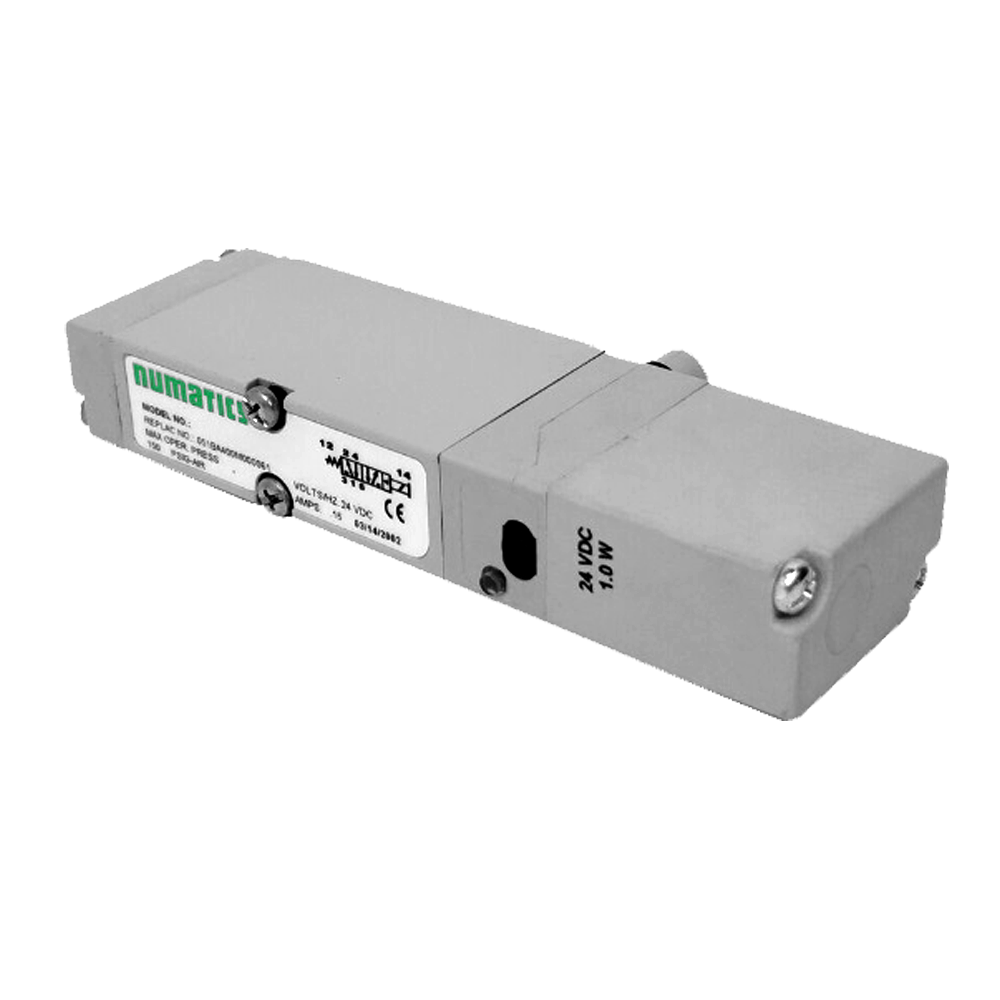

122BA400M000061 | NUMATICS SOL-PILOT VALVE
2012 SERIES 5/2 SGL SOL 24VDC

  • $100.54 / EA
  • Qty Available: 59.00
  • Log in to see if custom discounts apply
NUMATICS SOL-PILOT VALVE<BR>2012 SERIES 5/2 SGL SOL 24VDC
Click image to enlarge

122BA400M000061
NUMATICS SOL-PILOT VALVE
2012 SERIES 5/2 SGL SOL 24VDC

  • UM : EA
Modular reality, plug together flexibility in design! 4-way solenoid air pilot actuated valves. Available in manifold & base mount. Supported electronic interface/bus protocols include DeviceNet, Allen-Bradley, Remote I/O and Profibus DP.

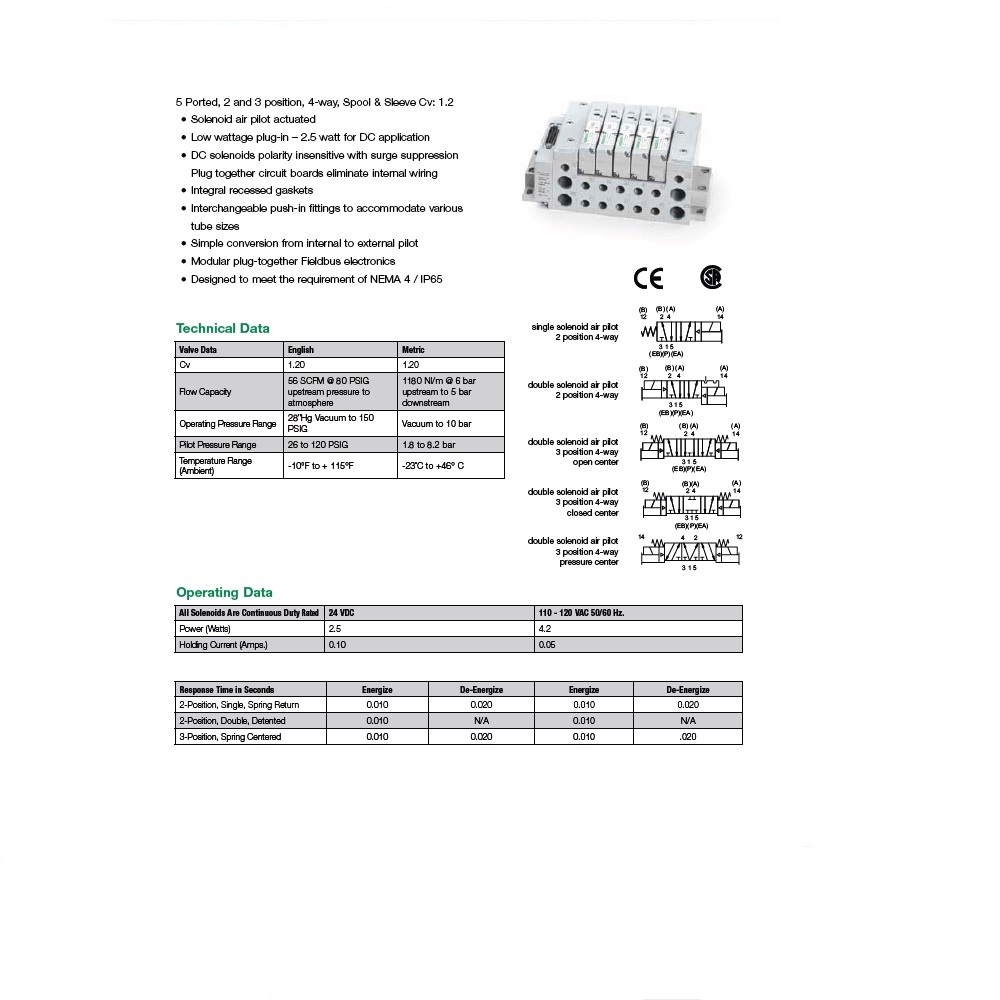

Standard Specifications:

  • Cv: 1.2
  • Port Sizes: 1/4, 3/8, 8mm, 10mm. Push-In, NPTF & G Tap
  • 5 ported, 2 and 3 position, 4-way, spool & sleeve
  • Flow Capacity: 56 SCFM @ 80 PSIG / 1180 NI/m @ 6 bar
  • Operating Pressure Range: 28" Hg. Vacuum to 150 PSIG / Vacuum to 10 bar
  • Pilot Pressure Range: 26 to 120 PSIG / 1.8 to 8.2 bar
  • Temperature Range (Ambient): -10°F to +115°F / -23°C to +46°C
Features:
  • Fieldbus Electronics and I/O Capable
  • Solenoid air pilot actuated
  • Low wattage plug-in 2.5 watt for DC application
  • DC solenoids polarity insensitive with surge suppression
  • Plug together circuit boards eliminate internal wiring
  • Integral recessed gaskets
  • Interchangeable push-in fittings to accommodate various tubing sizes
  • Simple conversion from internal to external pilot
  • Modular plug-together Fieldbus electronics
  • NEMA 4/IP65
Catalog:
View/Download

CAD Files:
Click Here

Not Finding What You Need?
Send us an E-Mail:

sales@thepneumaticstore.com

Product Specifications
CONTROL FUNCTION SINGLE SOLENOID
VALVE FUNCTION 4 WAY 2 POSITION
VOLTAGE 24 VDC
SPECIAL OPTION NONE
