THE NUMATICS/AVENTICS MARK 3 SERIES OFFERS HIGH FLOW IN A MINIATURE VALVE DESIGN. IT IS AVAILABLE WITH 10-32 OR 1/8 PORTING IN EITHER SUB-BASE OR MANIFOLD MOUNTING, SANDWICH SPEED CONTROL AND SANDWICH PRESSURE REGULATORS.

STANDARD SPECIFICATIONS FOR MARK 3, SPA 3, AND PA 3 SERIES VALVE:

• CV: 0.35
• PORT SIZES: 1/8 NPTF & G, 10-32, M5
• 5 PORTED, 2 AND 3 POSITION, 4-WAY, SPOOL & SLEEVE
• FLOW CAPACITY: 8.34 TO 16.21 SCFM @ 80 PSIG / 177 TO 345 NI/M @ 6 BAR
• OPERATING PRESSURE RANGE: 28" HG. VACUUM TO 150 PSIG / VACUUM TO 10 BAR
• PILOT PRESSURE RANGE: 20 TO 100 PSIG / 2 POSITION DETENTED 15 TO 100 PSIG
• TEMPERATURE RANGE (AMBIENT): -10?F TO +115?F (-23?C TO +46?C) / AIR PILOT +200?F (+93?C)

FEATURES FOR MARK 3, SPA 3, AND PA 3 SERIES VALVE:

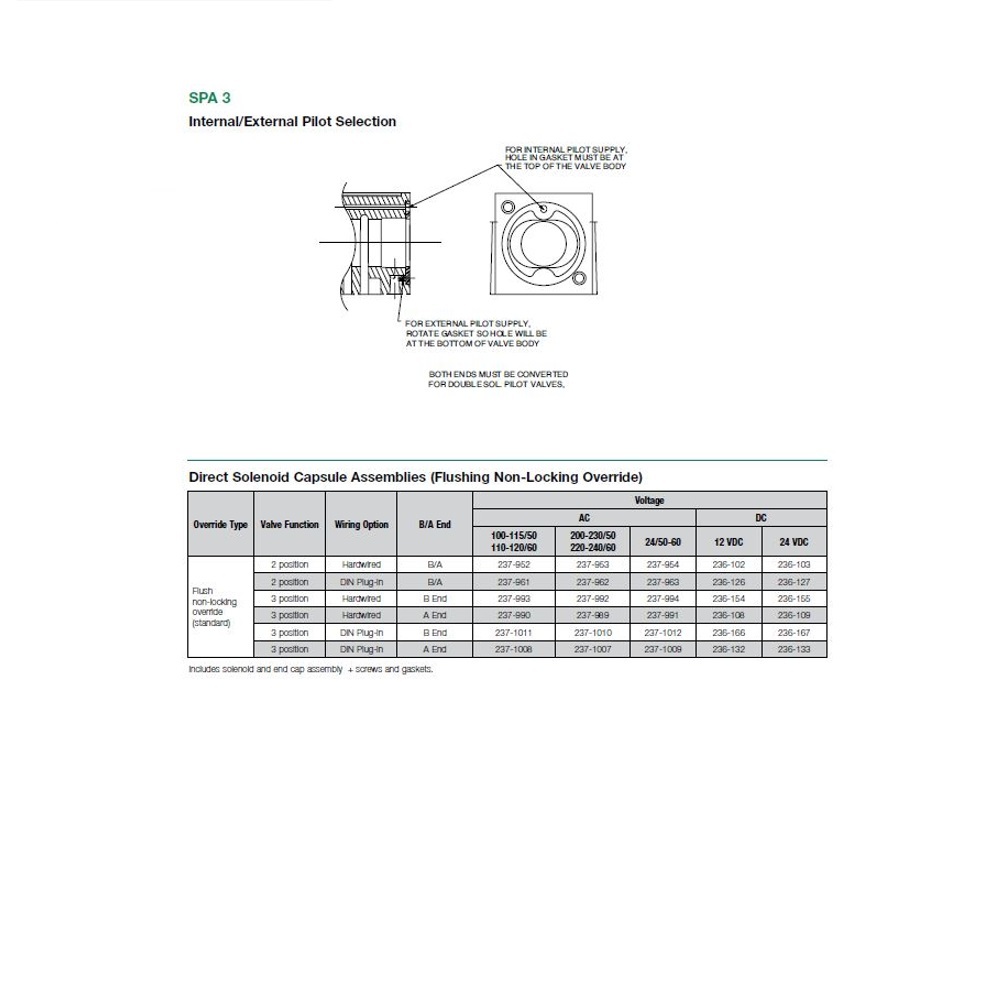

• DIRECT SOLENOID, AIR PILOT OR SOLENOID AIR PILOT ACTUATED
• DIN PLUG-IN SOLENOID WITH INDICATOR LIGHT
• UNLUBRICATED OR LUBRICATED SERVICE
• INTEGRAL SPEED CONTROL AVAILABLE
• INTEGRAL REGULATORS AVAILABLE
• NEMA 4/IP65
