Item # 2404-06-02

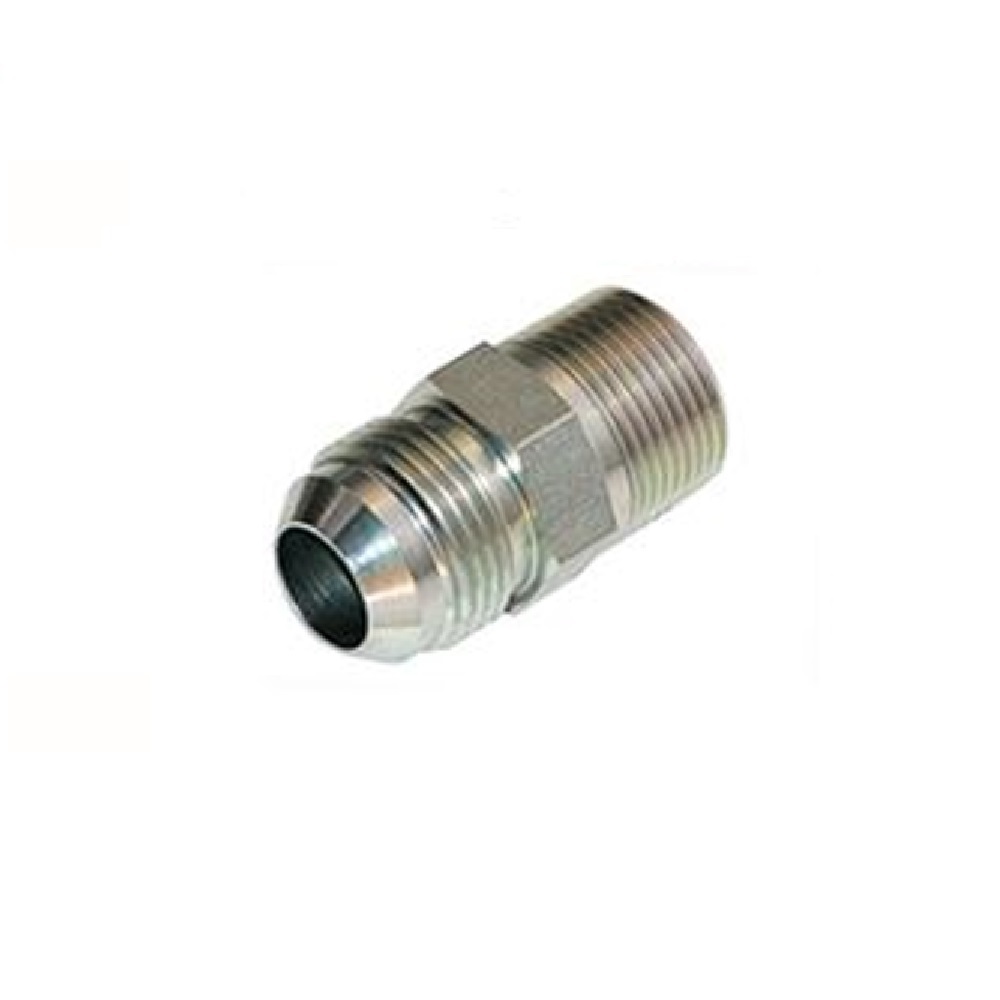

AIR-WAY STEEL FITTING
1/8" NPT MALE X 3/8" 37DEG JIC MALE HEX NIPPLE
Click image to enlarge
Item # 2404-06-02
AIR-WAY STEEL FITTING
1/8" NPT MALE X 3/8" 37DEG JIC MALE HEX NIPPLE
- UM: EA
UNLESS OTHERWISE SPECIFIED, FITTINGS ARE MACHINED FROM
COLD DRAWN CARBON STEEL BARSTOCK AND FORGINGS. STANDARD
PLATING IS ELECTRODEPOSITED ZINC WITH A CLEAR TRIVALENT
CHROMATE CONVERSION COATING IN ACCORDANCE WITH ASTM
B633 (TYPE V SC2). THE MINIMUM SALT SPRAY RESISTANCE
IS 240 HOURS TO RED CORROSION WHEN TESTED IN ACCORDANCE
WITH ASTM B117.
NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM
Specifications
| SIZE (1) | 3/8" |
| TYPE (1) | JIC |
| MALE / FEMALE | MALE |
| SIZE (2) | 1/8" |
| TYPE (2) | NPT |
| MALE/FEMALE | MALE |
| STYLE | HEX NIPPLE |
| MATERIAL | STEEL |
