Item # 32-4590M12-0
MODULAR SOLUTIONS FOOT & CASTER CONNECTING PLATE
45MM X 90MM, M12 HOLE
Click image to enlarge
Item # 32-4590M12-0
MODULAR SOLUTIONS FOOT & CASTER CONNECTING PLATE
45MM X 90MM, M12 HOLE
- UM : EA

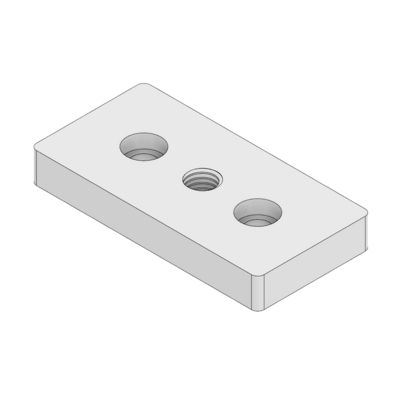

MODULAR SOLUTIONS FOOT & CASTER CONNECTING PLATE-45MM X 90MM, M12 HOLE
- MOUNTING PLATE 45 X 90
- M12THREADED THRU HOLE
- METALIC IN COLOR
- MATERIAL: CAST ALUMINUM
TECHNICAL

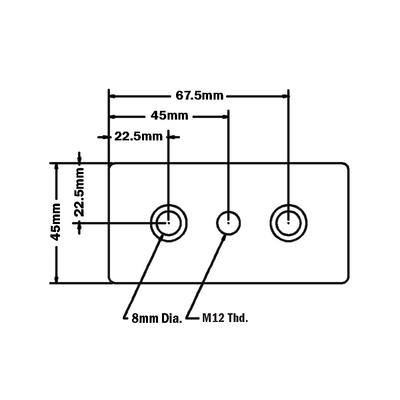

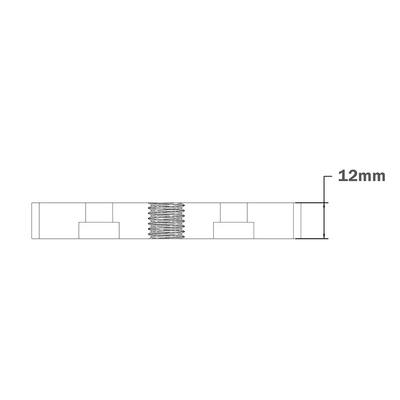

- M12 X 1.75 THRU HOLE
- M8 COUNTERSUNK THRU HOLES
INFO
- COMMONLY USE TO MOUNT CASTERS AND STEM FEET
- NO MOUNTING HARDWARE
NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM
Specifications
| PLATE SIZE | 45 X 90 |
| THREAD SIZE | M12 |
| PLATE TYPE | CAST ALUMINUM PLATE |
