Item # 33-9090-1

MODULAR SOLUTIONS FOOT
90MM X 90MM (4) SIDED FOOR W/12MM FLOOR ANCHOR HOLES

$59.40 / EA

  • Log in to see if custom discounts apply
33-9090-1 MODULAR SOLUTIONS FOOT<br>90MM X 90MM (4) SIDED FOOR W/12MM FLOOR ANCHOR HOLES
33-9090-1 MODULAR SOLUTIONS FOOT<br>90MM X 90MM (4) SIDED FOOR W/12MM FLOOR ANCHOR HOLES
33-9090-1 MODULAR SOLUTIONS FOOT<br>90MM X 90MM (4) SIDED FOOR W/12MM FLOOR ANCHOR HOLES
33-9090-1 MODULAR SOLUTIONS FOOT<br>90MM X 90MM (4) SIDED FOOR W/12MM FLOOR ANCHOR HOLES
33-9090-1 MODULAR SOLUTIONS FOOT<br>90MM X 90MM (4) SIDED FOOR W/12MM FLOOR ANCHOR HOLES
33-9090-1 MODULAR SOLUTIONS FOOT<br>90MM X 90MM (4) SIDED FOOR W/12MM FLOOR ANCHOR HOLES
33-9090-1 MODULAR SOLUTIONS FOOT<br>90MM X 90MM (4) SIDED FOOR W/12MM FLOOR ANCHOR HOLES
33-9090-1 MODULAR SOLUTIONS FOOT<br>90MM X 90MM (4) SIDED FOOR W/12MM FLOOR ANCHOR HOLES
Click image to enlarge

Item # 33-9090-1

MODULAR SOLUTIONS FOOT
90MM X 90MM (4) SIDED FOOR W/12MM FLOOR ANCHOR HOLES

  • UM : EA

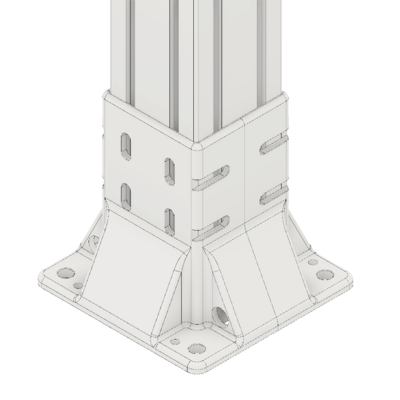

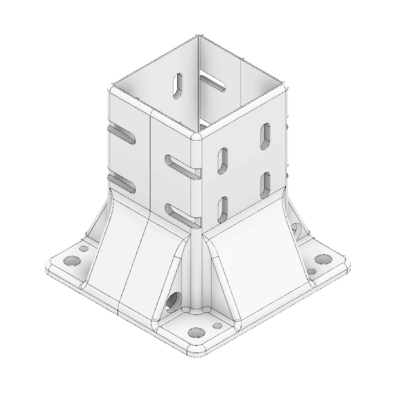

MODULAR SOLUTIONS FOOT-90MM X 90MM FOUR SIDED W/12MM FLOOR ANCHOR HOLES W/ HARDWARE

  • MOUNTING FOOT 4 SIDED FOR 90 X 90
  • FULLY ENCLOSED
  • METALIC IN COLOR
  • MATERIAL: CAST ALUMINUM

TECHNICAL

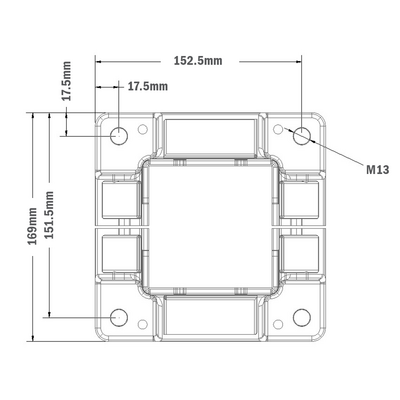

  • WITH 12MM FLOOR ANCHOR HOLES
  • UP TO 40MM OF HEIGHT OF ADJUSTMENT
  • WORK WITH 1/2 IN X 3 3/4 IN WEDGE ANCHOR 24-123-0

INFO

  • WORKS WELL WITH PROFILES 10-9090
  • HARDWARE INCLUDED

NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

Specifications

SIZE 90 X 90
MOUNT 4 MOUNITNG SIDES
FEATURE TALL
