Item # 40-160-3

MODULAR SOLUTIONS ALUMINUM GUSSET
30 SERIES 18.5MM X 45MM ANGLE W/HARDWARE

  • TYPICALLY STOCKED, IF OUT CONTACT FOR ETA

$3.50 / EA

    • Log in to see if custom discounts apply
    40-160-3 MODULAR SOLUTIONS ALUMINUM GUSSET<BR>30 SERIES 18.5MM X 45MM ANGLE W/HARDWARE
    40-160-3 MODULAR SOLUTIONS ALUMINUM GUSSET<BR>30 SERIES 18.5MM X 45MM ANGLE W/HARDWARE
    40-160-3 MODULAR SOLUTIONS ALUMINUM GUSSET<BR>30 SERIES 18.5MM X 45MM ANGLE W/HARDWARE
    40-160-3 MODULAR SOLUTIONS ALUMINUM GUSSET<BR>30 SERIES 18.5MM X 45MM ANGLE W/HARDWARE
    40-160-3 MODULAR SOLUTIONS ALUMINUM GUSSET<BR>30 SERIES 18.5MM X 45MM ANGLE W/HARDWARE
    40-160-3 MODULAR SOLUTIONS ALUMINUM GUSSET<BR>30 SERIES 18.5MM X 45MM ANGLE W/HARDWARE
    Click image to enlarge

    Item # 40-160-3

    MODULAR SOLUTIONS ALUMINUM GUSSET
    30 SERIES 18.5MM X 45MM ANGLE W/HARDWARE

    • UM: EA

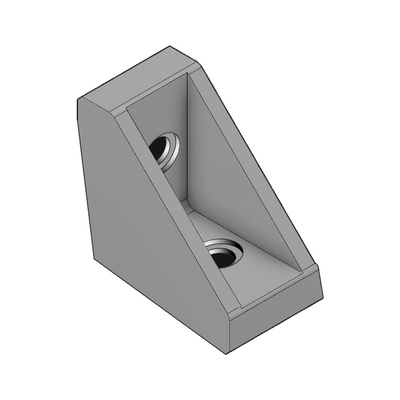

    MODULAR SOLUTIONS ALUMINUM GUSSET-30 SERIES 18.5MM X 45MM ANGLE W/ HARDWARE

    • GUSSET BRACKET 18.5 X 45
    • REINFORCEMENT ANGLE
    • PAINTED GRAY
    • MATERIAL: CAST ALUMINUM

    TECHNICAL

    • WEIGHT: 0.12 LBS. / 0.05 KG.
    • SLOTTED HOLE FOR M8 BOLT
    • ANTI ROTATE FOR 8MM T SLOT
    • INCLUDES HARDWARE

    INFO

    • WORKS WELL WITH 10-3030 PROFILES

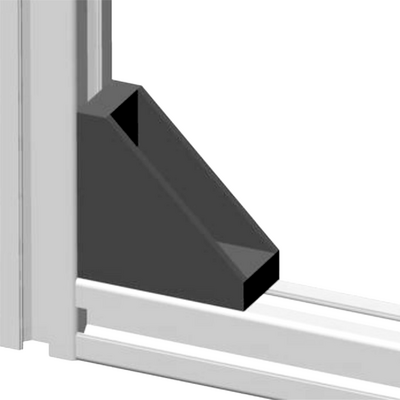

    • CONNECTING PROFILES AT RIGHT ANGLES
