Item # 40-34590-1

MODULAR SOLUTIONS ALUMINUM GUSSET
45MM X 90MM STRENGTHING ELEMENT CUT AT A 45 DEG ANGLE THAT CREATES STURDIER 90DEG CONNECTIONS 360MM

$34.10 / EA

  • Qty Available: 81.25
  • Log in to see if custom discounts apply
40-34590-1 MODULAR SOLUTIONS ALUMINUM GUSSET<br>45MM X 90MM STRENGTHING ELEMENT CUT AT A 45 DEG ANGLE THAT CREATES STURDIER 90DEG CONNECTIONS 360MM
40-34590-1 MODULAR SOLUTIONS ALUMINUM GUSSET<br>45MM X 90MM STRENGTHING ELEMENT CUT AT A 45 DEG ANGLE THAT CREATES STURDIER 90DEG CONNECTIONS 360MM
40-34590-1 MODULAR SOLUTIONS ALUMINUM GUSSET<br>45MM X 90MM STRENGTHING ELEMENT CUT AT A 45 DEG ANGLE THAT CREATES STURDIER 90DEG CONNECTIONS 360MM
40-34590-1 MODULAR SOLUTIONS ALUMINUM GUSSET<br>45MM X 90MM STRENGTHING ELEMENT CUT AT A 45 DEG ANGLE THAT CREATES STURDIER 90DEG CONNECTIONS 360MM
40-34590-1 MODULAR SOLUTIONS ALUMINUM GUSSET<br>45MM X 90MM STRENGTHING ELEMENT CUT AT A 45 DEG ANGLE THAT CREATES STURDIER 90DEG CONNECTIONS 360MM
40-34590-1 MODULAR SOLUTIONS ALUMINUM GUSSET<br>45MM X 90MM STRENGTHING ELEMENT CUT AT A 45 DEG ANGLE THAT CREATES STURDIER 90DEG CONNECTIONS 360MM
40-34590-1 MODULAR SOLUTIONS ALUMINUM GUSSET<br>45MM X 90MM STRENGTHING ELEMENT CUT AT A 45 DEG ANGLE THAT CREATES STURDIER 90DEG CONNECTIONS 360MM
40-34590-1 MODULAR SOLUTIONS ALUMINUM GUSSET<br>45MM X 90MM STRENGTHING ELEMENT CUT AT A 45 DEG ANGLE THAT CREATES STURDIER 90DEG CONNECTIONS 360MM
Click image to enlarge

Item # 40-34590-1

MODULAR SOLUTIONS ALUMINUM GUSSET
45MM X 90MM STRENGTHING ELEMENT CUT AT A 45 DEG ANGLE THAT CREATES STURDIER 90DEG CONNECTIONS 360MM

  • UM : EA

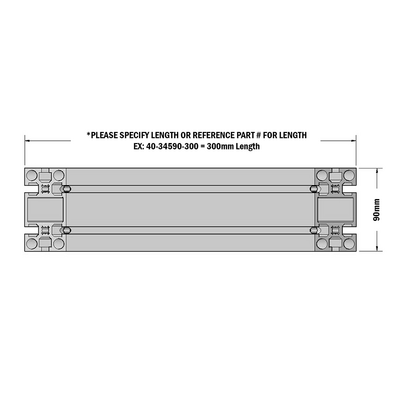

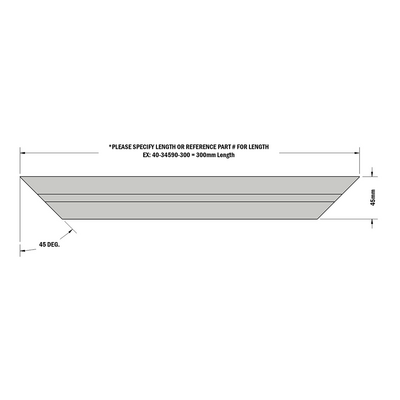

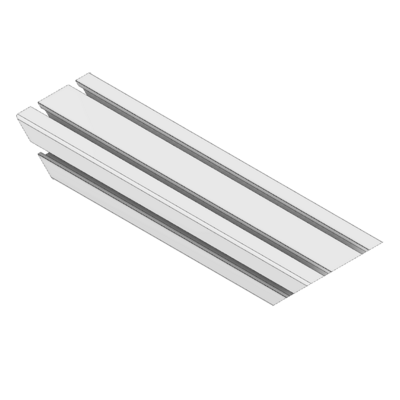

MODULAR SOLUTIONS ALUMINUM GUSSET-45MM X 90MM STRENGTHING ELEMENT CUT AT A 45? ANGLE THAT CREATES STURDIER 90? CONNECTIONS 360MM

  • 45X90 STRENGTHENING BRACE, 45 DEG
  • 360MM LONG
  • COLOR CLEAR ANODIZATION
  • MATERIAL: EXTRUDED ALUMINUM

TECHNICAL

  • WEIGHT: 0.9533333 LBS. / 0.43 KG.
  • 6063 T6 ANODIZED ALUMINUM
  • INCLUDES FASTENING KIT TO PROFILE

INFO

  • WORKS WELL WITH 10-4590 PROFILES
  • HELPS SPREAD THE FORCE RECEIVED BY THE WALL

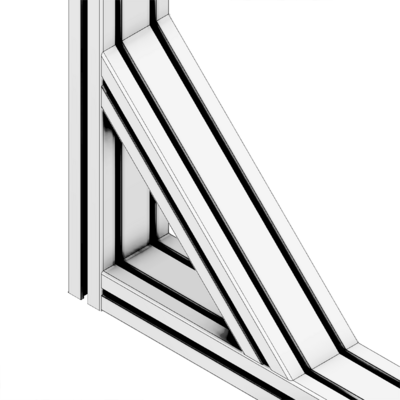

  • 45 DEG ANGLE, THAT STRENGTHENS A 90 DEG CONNECTION
