Item # 4A130PM5

AIRTAC CONTROL VALVE, 4A1 SERIES, DOUBLE SOLENOID
4 WAY 3 POSITION PRESSURE CENTER AIR PILOTED, M5M5, NONE

  • $30.13 / EA
  • Manufacturer: AIRTAC
  • UM: EA

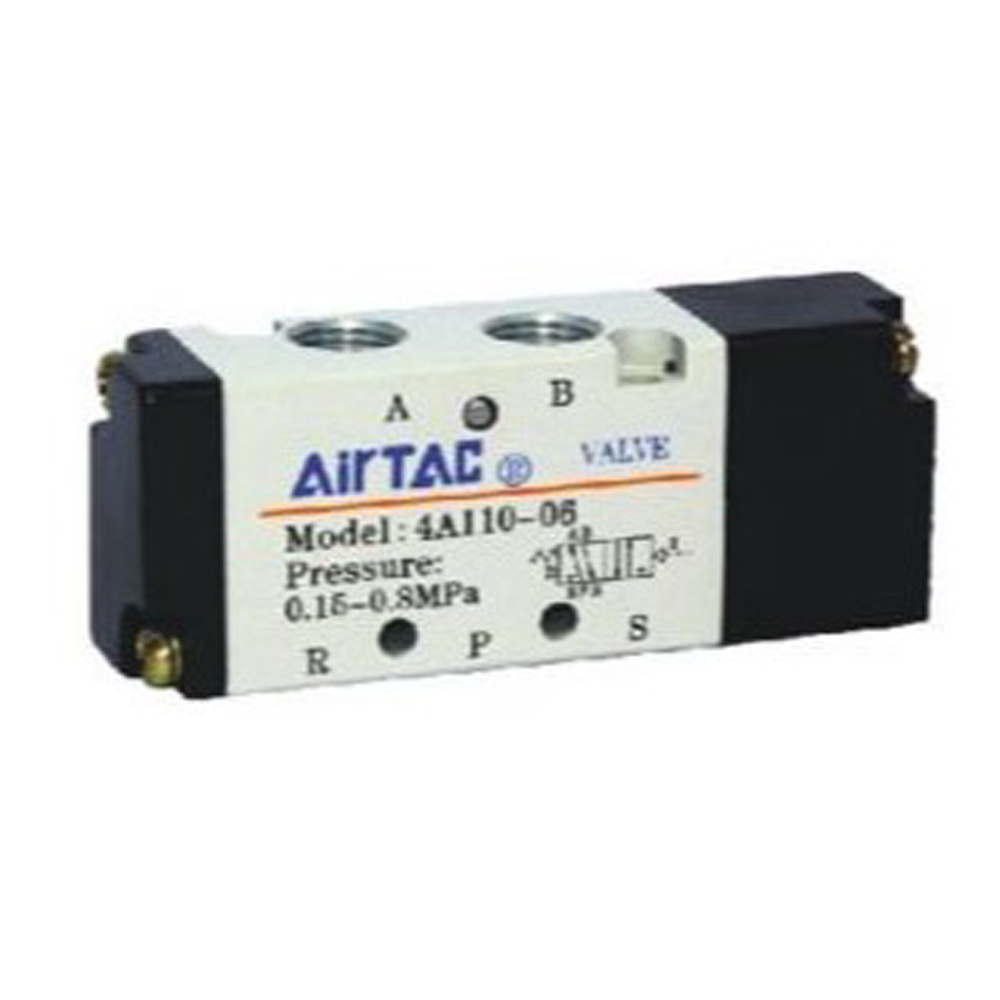

AIRTAC 4A100 SERIES - AIR PILOT VALVES

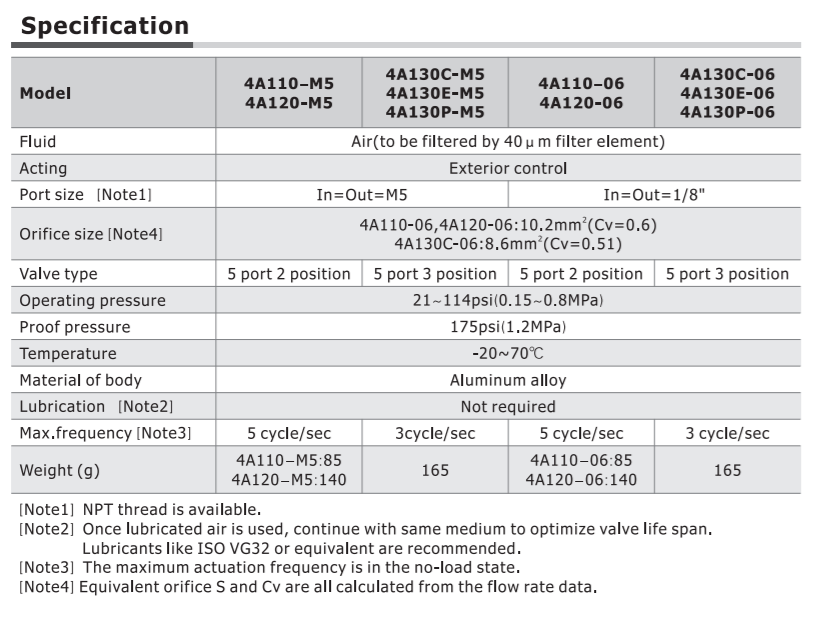

SPECIFICATIONS
MODEL #:
4A110-M5,
4A120-M5
4A130(C/E/P)-M5
4A110-06, 4A120-06
4A130(C/E/P)-06
VALVE TYPE:
4A110-M5 &
4A120-M5:
5 PORT 2 POSITION
4A130(C/E/P)-M5:
5 PORT 3 POSITION
4A110-06 &
4A120-06:
5 PORT 2 POSITION
4A130(C/E/P)-06:
5 PORT 3 POSITION.
PORT TYPE:
M5: 4A110-M5,
4A120-M5 &
4A130(C/E/P)
1/8": 4A110-06, 4A120-06 & 4A130(C/E/P)-06
FLOW:
4A110-M5 &
4A120-M5:
CV: 0.31
4A130(C/E/P)-M5:
CV: 0.67
4A110-06,
4A120-06:
CV: 0.67
4A130(C/E/P)-06:
CV: 0.50
OPERATING
PRESSURE:
0.15-0.8MPA
(21-114PSI)
TEMPERATURE
RANGE:
-20~70?C


FEATURES
THE VALVE SPOOL & SLEEVE OFFERS GOOD TIGHTNESS AND SENSITIVE REACTION.
THE DOUBLE AIR CONTROL VALVE OFFERS MEMORY FUNCTIONALITY.
THE VALVE SLEEVES ARE PRECISION MANUFACTURED WITH HOLES THAT GIVE LITTLE ATTRITION FRICTION. THIS ALLOWS LOW START PRESSURE & LONGER LIFE
NO NEED TO ADD OIL FOR LUBRICATION.
MULTIPLE MOUNTING HOLES OFFER AN EASY AND ADAPTABLE INSTALL AND APPLICATION.
BY INTEGRATING WITH MANIFOLDS, YOU CAN SAVE SPACE FOR INSTALLATION.


THE AUTOMATION WAREHOUSE IS AN AUTHORIZED, STOCKING AIRTAC DISTRIBUTOR. IT HAS A WIDE VARIETY OF FLUID POWER & LINEAR MOTION SOLUTIONS WHICH ARE GREAT FOR MANY APPLICATIONS SUCH AS:

  • ROBOTIC APPLICATIONS/END OR ARM TOOLING
  • MANUFACTURING EQUIPMENT
  • PACKAGING EQUIPMENT
  • MATERIAL HANDLING EQUIPMENT
  • COMPRESSED AIR SYSTEMS/AIR COMPRESSORS
  • MEDICAL EQUIPMENT
  • AND MORE...

CAD FILES:
CLICK HERE

NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

4A130PM5 AIRTAC CONTROL VALVE, 4A1 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION PRESSURE CENTER AIR PILOTED, M5M5, NONE
4A130PM5 AIRTAC CONTROL VALVE, 4A1 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION PRESSURE CENTER AIR PILOTED, M5M5, NONE
4A130PM5 AIRTAC CONTROL VALVE, 4A1 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION PRESSURE CENTER AIR PILOTED, M5M5, NONE
4A130PM5 AIRTAC CONTROL VALVE, 4A1 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION PRESSURE CENTER AIR PILOTED, M5M5, NONE
Click image to enlarge
4A130PM5 AIRTAC CONTROL VALVE, 4A1 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION PRESSURE CENTER AIR PILOTED, M5M5, NONE
4A130PM5 AIRTAC CONTROL VALVE, 4A1 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION PRESSURE CENTER AIR PILOTED, M5M5, NONE
4A130PM5 AIRTAC CONTROL VALVE, 4A1 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION PRESSURE CENTER AIR PILOTED, M5M5, NONE
4A130PM5 AIRTAC CONTROL VALVE, 4A1 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION PRESSURE CENTER AIR PILOTED, M5M5, NONE

Specifications

PORT SIZE SMALL BODY AIR PIOLTED VALVES
PORT TYPE M5
CONTROL FUNCTION DOUBLE PILOTED

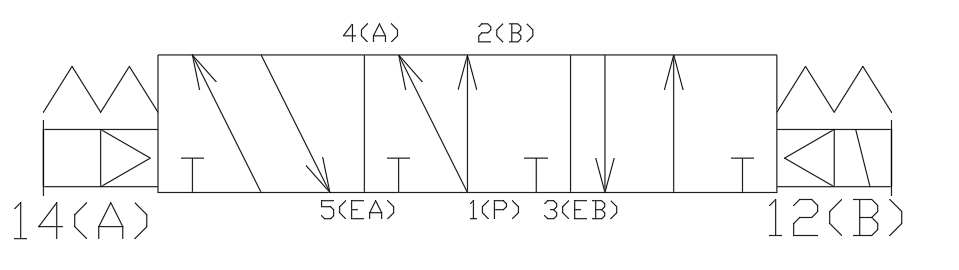

VALVE FUNCTION 4 WAY 3 POSITION PRESSURE CENTER
VOLTAGE AIR PILOTED
NONE
SERIES AIRTAC 4A1 SERIES

Item # 4A130PM5

AIRTAC CONTROL VALVE, 4A1 SERIES, DOUBLE SOLENOID
4 WAY 3 POSITION PRESSURE CENTER AIR PILOTED, M5M5, NONE

  • $30.13 / EA
    • IF OUT OF STOCK, LEAD TIME 3-5 DAYS
    • Log in to see if custom discounts apply

    Documents

    4A130PM5 AIRTAC CONTROL VALVE, 4A1 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION PRESSURE CENTER AIR PILOTED, M5M5, NONE
    4A130PM5 AIRTAC CONTROL VALVE, 4A1 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION PRESSURE CENTER AIR PILOTED, M5M5, NONE
    4A130PM5 AIRTAC CONTROL VALVE, 4A1 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION PRESSURE CENTER AIR PILOTED, M5M5, NONE
    4A130PM5 AIRTAC CONTROL VALVE, 4A1 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION PRESSURE CENTER AIR PILOTED, M5M5, NONE
