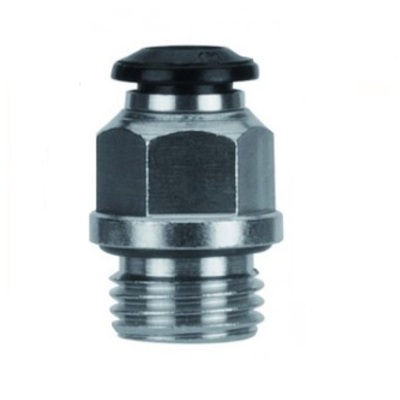

Item # 50020N-4-M5

AIGNEP PLASTIC PUSH-IN FITTING
4MM TUBE X M5 STRAIGHT

  • IF OUT OF STOCK, STD LEAD-TIME: 5-10 BUS DAYS

$1.67 / EA

    • Log in to see if custom discounts apply
    50020N-4-M5 AIGNEP PLASTIC PUSH-IN FITTING<BR>4MM TUBE X M5 STRAIGHT
    50020N-4-M5 AIGNEP PLASTIC PUSH-IN FITTING<BR>4MM TUBE X M5 STRAIGHT
    50020N-4-M5 AIGNEP PLASTIC PUSH-IN FITTING<BR>4MM TUBE X M5 STRAIGHT
    50020N-4-M5 AIGNEP PLASTIC PUSH-IN FITTING<BR>4MM TUBE X M5 STRAIGHT
    Click image to enlarge

    Item # 50020N-4-M5

    AIGNEP PLASTIC PUSH-IN FITTING
    4MM TUBE X M5 STRAIGHT

    • UM: EA

    AIGNEP 50020N - NICKEL PLATED PUSH TO CONNECT FITTING

    • PRESSURE RATING: VACUUM-290 PSI
    • TEMPERATURE RANGE: 0-176 ? F
    • TUBING COMPATIBILITY: PA6, PA11, PA12, POLYETHYLENE, POLYURETHANE, PTFE, FEP
    • MEDIA: COMPRESSED AIR, VACUUM
    • BODY: NICKEL PLATED BRASS
    • THREAD SEAL: NBR 70
    • THREAD TYPE: BSPP

    NOT FINDING WHAT YOU NEED?
    SEND US AN E-MAIL:
    SALES@THEPNEUMATICSTORE.COM

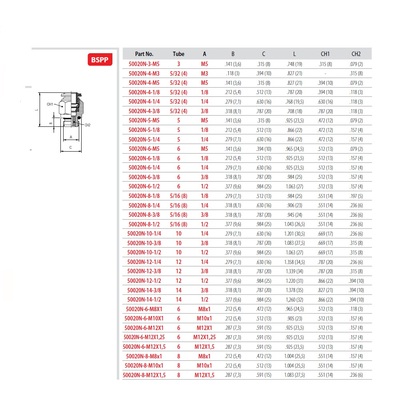

    Specifications

    TUBE SIZE 5/32" (4MM)
    THREAD SIZE M5
    THREAD TYPE THREAD
    STYLE STANDARD
