Item # 5814420600

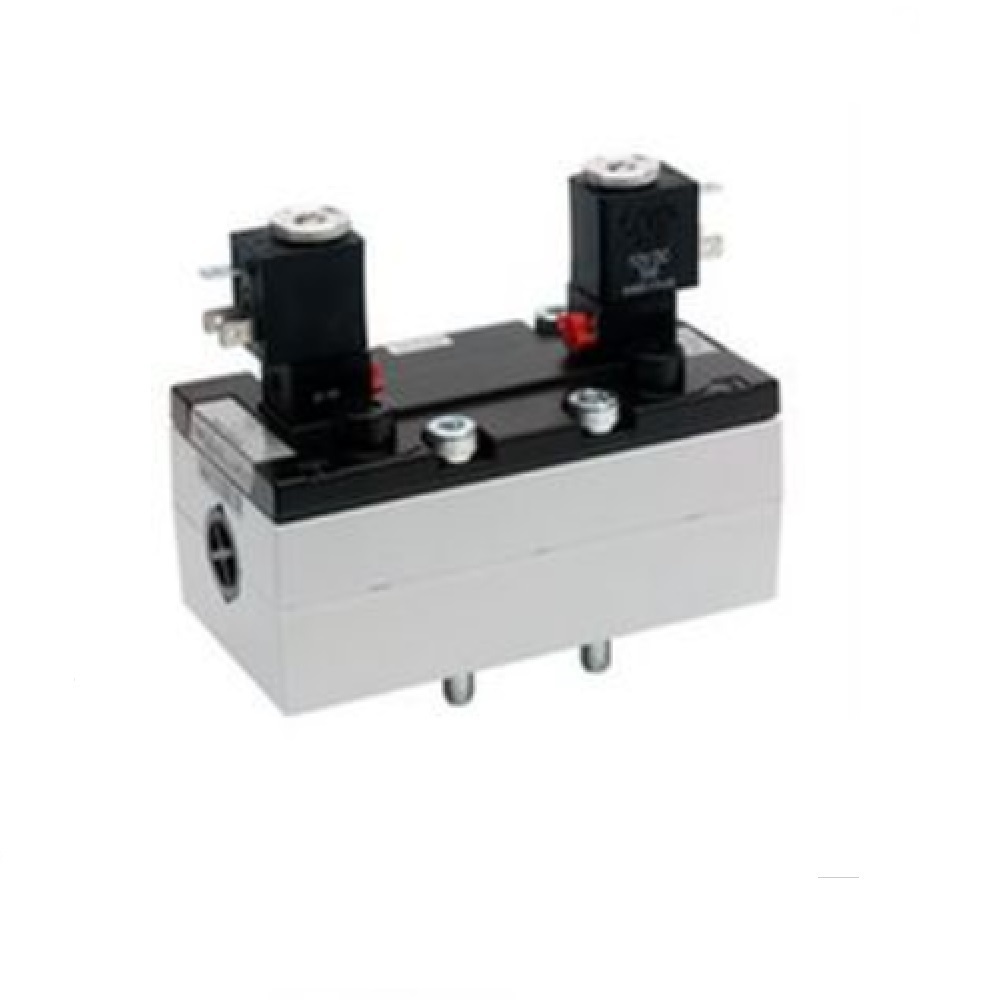

NUMATICS/AVENTICS SOL-PILOT VALVE
ISO4 5599/1 SERIES 5/3 CLOSED CTR 48VDC, DIN PLUG
Item # 5814420600
NUMATICS/AVENTICS SOL-PILOT VALVE
ISO4 5599/1 SERIES 5/3 CLOSED CTR 48VDC, DIN PLUG
- UM : EA
AVENTICS 581 SERIES ISO 5599-1 VALVES
PRECISE CONTROL ACROSS A BROAD RANGE OF APPLICATIONS
THE AVENTICS SERIES 581 IS DESIGNED FOR ALMOST EVERY APPLICATION REQUIRING THE USE OF ISO 5599-1 STANDARDIZED VALVES. THE MODULAR DESIGN ENABLES THE VALVE SYSTEMS TO BE CONFIGURED FOR SPECIFIC TASKS, INCLUDING THOSE REQUIRING 5/2, 5/3 AND 2X 3/2 VALVE FUNCTIONS, WITH FLOW RATES FROM 1,100 TO 6,000 L/MIN AND A PRESSURE RANGE FROM 0.95 TO 16 BAR. THE VALVE SYSTEMS PROVIDE FAST, PRECISE SWITCHING TIMES AND A LONG SERVICE LIFE OF UP TO 20 MILLION CYCLES.
NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM
Specifications
| FUNCTION | 5/3 CLOSED CENTER |
| SOLENOID OR AIR PILOT | SOLENOID PILOT |
| VOLTAGE | 48 VDC |
Documents
