THE 653 SERIES OFFERS A COMPLETE RANGE OF MODULAR, EASY-TO-ASSEMBLE AIR PREPARATION PRODUCTS. IT INCLUDES SEVERAL FILTRATION OPTIONS (PARTICULATE, COALESCING & ADSORBING) WITH AN EXTENSIVE SELECTION OF BOWL TYPES AND DRAINS. EXTENDED TEMPERATURE RANGE CAPABILITIES (-40 DEG F TO 176 DEG F / -40 DEG C TO 80 DEG C) ALLOW THE 653 SERIES TO BE SPECIFIED ACROSS A BROAD RANGE OF APPLICATIONS AND INDUSTRIES. OUR REGULATORS AND FILTER REGULATORS PROVIDE CUSTOMERS WITH THE HIGHEST IN-CLASS FLOWS IN THE INDUSTRY. AVAILABLE PORT SIZE/THREAD TYPES INCLUDE 1/2, 3/4 AND 1 (NPTF, ISO 228/1-G AND ISO 7/1 RC).

• OPTIONAL LOW PROFILE GAUGE, ROUND GAUGE, DIGITAL GAUGE OR DIGITAL PRESSURE SWITCH
• KEY LOCKABLE AND TAMPERPROOF OPTIONS ON REGULATORS AND FILTER/REGULATORS
• POLYCARBONATE AND ALUMINUM BOWLS WITH A SELECTION OF SIGHT GAUGE MATERIALS
• AIR PURITY CLASS ACCORDING TO ISO 8573-1: 2010 (FILTERS & FILTER/REGULATORS)

SHUT OFF ISOLATION VALVE

• ROBUST AND EASY-TO-OPERATE SHUT-OFF VALVE, WITH LOCKOUT (FRONT OR BACK) ON HANDLE
• COMPONENTS CAN BE SAFELY REMOVED WHEN PRESSURE (P2) IS AT ZERO

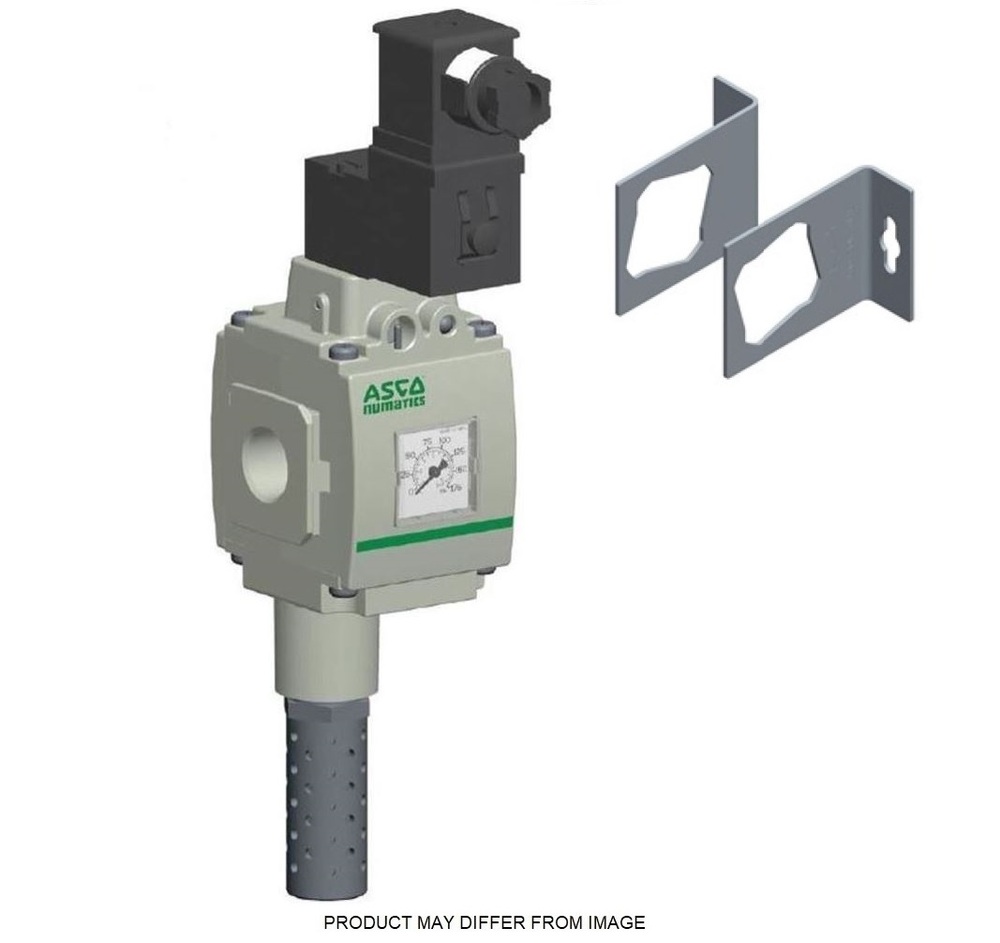

SLOW START/QUICK EXHAUST VALVES-SOLENOID OR AIR PILOTED

• HIGH EXHAUST CAPACITY FOR QUICK DEPLETION OF DOWNSTREAM PRESSURE
• SLOW STARTS PROVIDE GRADUAL INCREASE OF PRESSURE AND FULL FLOW ONCE 70% OF INLET PRESSURE IS ACHIEVED
• CONSTRUCTIONS INCLUDES: 3/2 QUICK EXHAUST, 3/2 SLOW-START/QUICK-EXHAUST, AND 2/2 SLOW START
