Item # 89958-06-06

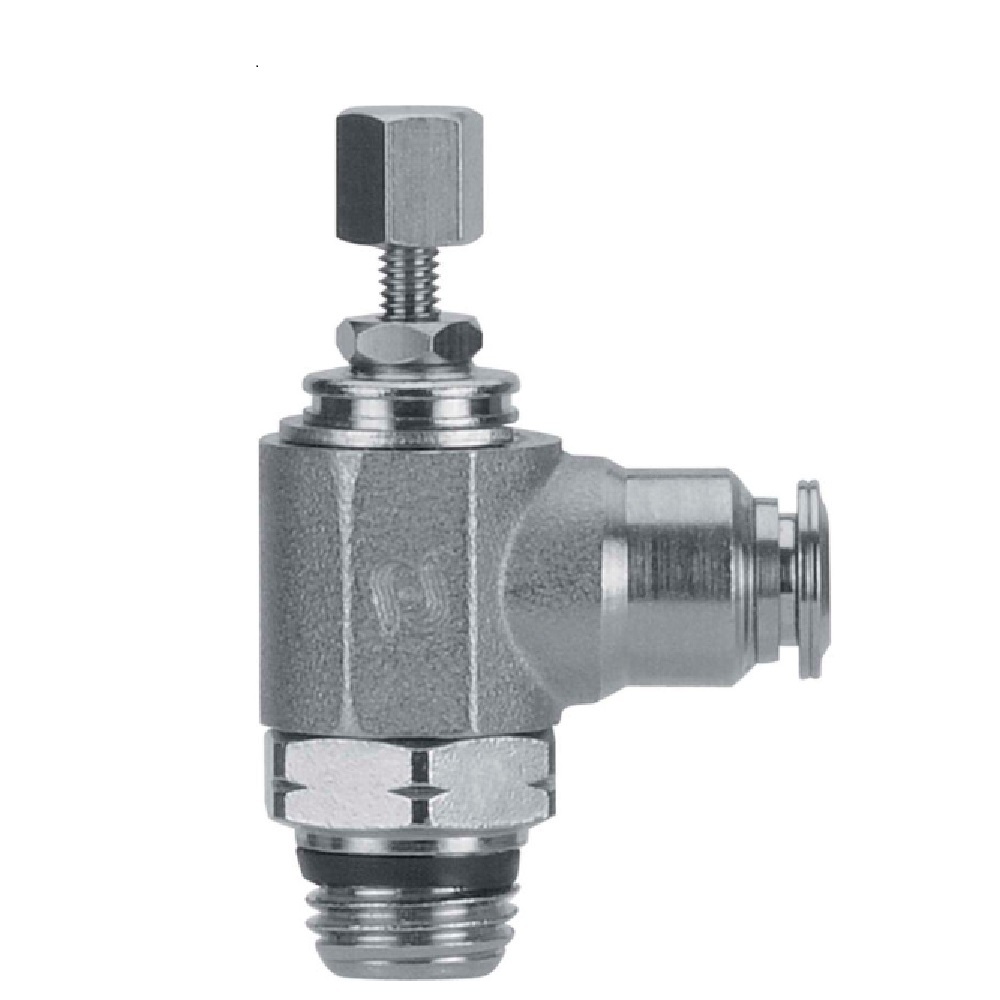

AIGNEP NP BRASS FLOW CONTROL
3/8" TUBE X 3/8" NPT MALE METER OUT, KNOB ADJ
Click image to enlarge
Item # 89958-06-06
AIGNEP NP BRASS FLOW CONTROL
3/8" TUBE X 3/8" NPT MALE METER OUT, KNOB ADJ
- UM: EA
AIGNEP 89958 - NICKEL PLATED PUSH TO CONNECT FLOW CONTROL
- INCH TUBE FLOW CONTROL (OUT)
- PRESSURE RATING: VACUUM-290 PSI
- TEMPERATURE RANGE: 0-176? F
- TUBING COMPATIBILITY: NYLON, POLYETHYLENE, POLYURETHANE, COPPER
- MEDIA: COMPRESSED AIR
- BODY: NICKEL PLATED BRASS
- THREAD SEAL: NBR 70
- THREAD TYPE: UNIFIT/SWIFTFIT
NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

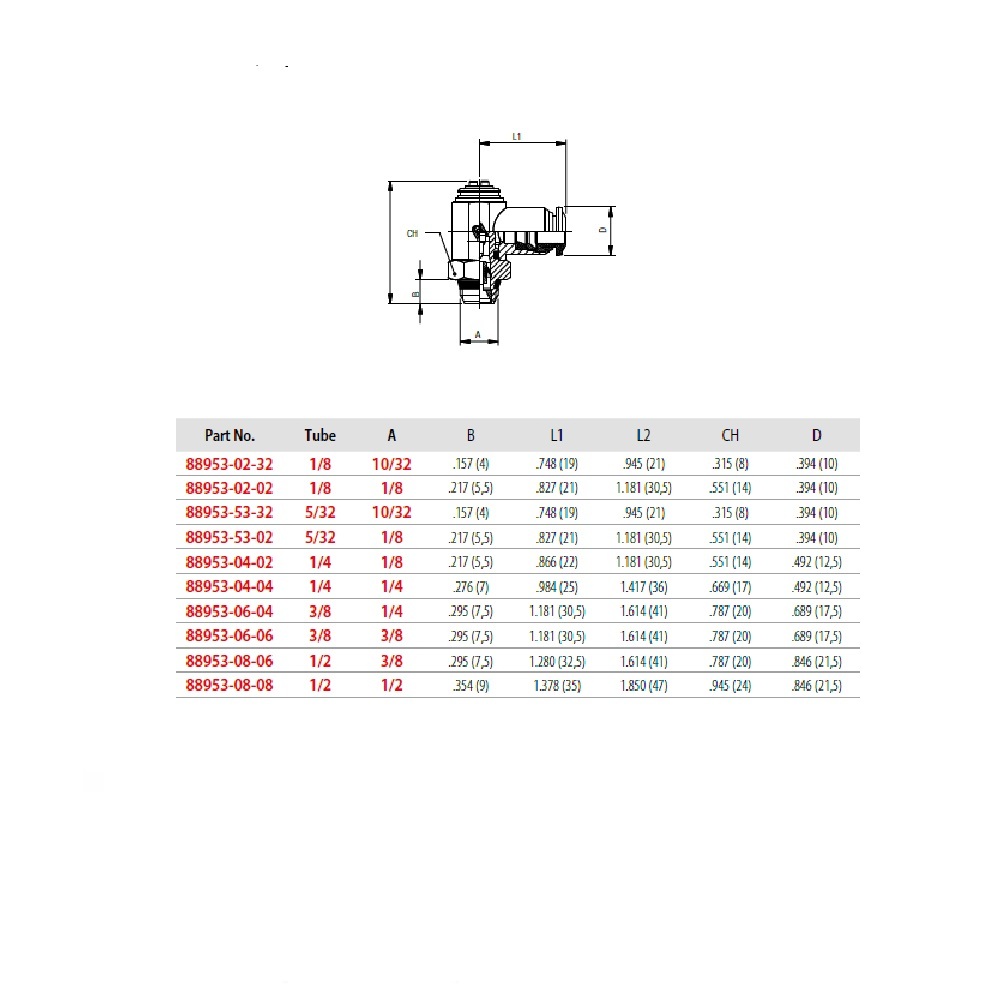

Specifications
| PORT SIZE | 3/8" NPT |
| MALE/FEMALE | MALE |
| TUBE SIZE | 3/8" |
| TYPE | METER OUT |
| OPTIONS | KNURLED KNOB |
Documents
Alternate Products
3FPRN12
- NUMATICS/AVENTICS FLOW CONTROL<BR>3/8" TUBE X 3/8" NPT MALE METER OUT, SCREW ADJ
- $64.20 / EA
89953-06-06
- AIGNEP NP BRASS FLOW CONTROL<BR>3/8" TUBE X 3/8" NPT MALE METER OUT, SCREW ADJ
- $17.03 / EA
INB135C-308-022
- NUMATICS/AVENTICS NP BRASS FLOW CONTROL<BR>3/8" TUBE X 3/8" NPT MALE METER OUT, SCREW ADJ
- $31.70 / EA
INB136C-308-022
- NUMATICS/AVENTICS NP BRASS FLOW CONTROL<BR>3/8" TUBE X 3/8" NPT MALE METER OUT, KNOB ADJ
- $37.34 / EA
INWB1391C-308-022
- NUMATICS/AVENTICS NP BRASS FLOW CONTROL<BR>3/8" TUBE X 3/8" UNIV MALE METER OUT, SCREW ADJ
- $31.70 / EA
INWB139C-308-022
- NUMATICS/AVENTICS NP BRASS FLOW CONTROL<BR>3/8" TUBE X 3/8" UNIV MALE METER OUT, KNOB ADJ
- $37.34 / EA
R432002378
- NUMATICS/AVENTICS PLASTIC FLOW CONTROL<BR>3/8" TUBE X 3/8" UNIV MALE METER OUT, KNOB ADJ (OVAL)
- $13.36 / EA
×
