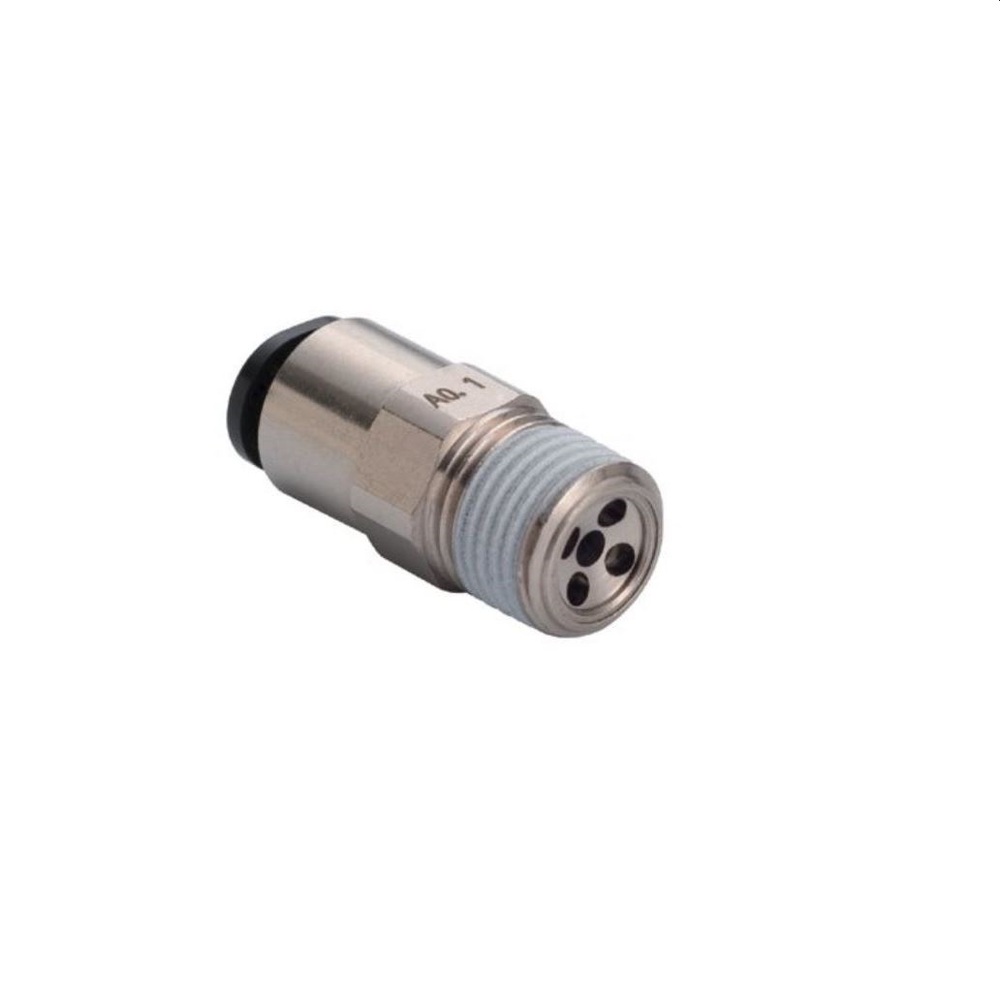

Item # JKC8-02A2.0

PISCO FIXED ORIFICE FLOW CONTROL
8MM TUBE X 1/4" BSPT MALE METER OUT (2.0MM ORIFICE)

  • $4.48 / EA
  • Manufacturer: PISCO
  • UM: EA
THIS PISCO SPEED CONTROLER FIXES THE OPERATION SPEED OF A DRIVING DEVICE.

  • MODEL TYPE: STRAIGHT
  • WEIGHT: 21.0g
  • METAL: BRASS WITH ELECTROLESS NICKEL PLATING
  • SEAL RUBBER: NBR HNBR
  • ORIFICE BOREfN(MM): 2 +0.025/0

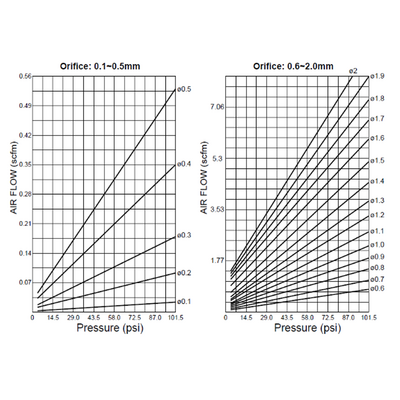

  • CONTROL FLOW EFFECTIVE AREA: 2.8MM^2
  • FLUID MEDIUM: AIR
  • OPERATING PRESSURE RANGE: 0.1-0.9MPa
  • CHECK VALVE CRACKING PRESSURE: 0.05MPa

NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

JKC8-02A2.0 PISCO FIXED ORIFICE FLOW CONTROL<BR>8MM TUBE X 1/4" BSPT MALE METER OUT (2.0MM ORIFICE)
JKC8-02A2.0 PISCO FIXED ORIFICE FLOW CONTROL<BR>8MM TUBE X 1/4" BSPT MALE METER OUT (2.0MM ORIFICE)
Click image to enlarge
JKC8-02A2.0 PISCO FIXED ORIFICE FLOW CONTROL<BR>8MM TUBE X 1/4" BSPT MALE METER OUT (2.0MM ORIFICE)
JKC8-02A2.0 PISCO FIXED ORIFICE FLOW CONTROL<BR>8MM TUBE X 1/4" BSPT MALE METER OUT (2.0MM ORIFICE)

Specifications

PORT SIZE 1/4" BSPT
TUBE SIZE 8MM
ORIFACE SIZE 2.0MM

Item # JKC8-02A2.0

PISCO FIXED ORIFICE FLOW CONTROL
8MM TUBE X 1/4" BSPT MALE METER OUT (2.0MM ORIFICE)

  • $4.48 / EA
    • Log in to see if custom discounts apply

    Documents

    JKC8-02A2.0 PISCO FIXED ORIFICE FLOW CONTROL<BR>8MM TUBE X 1/4" BSPT MALE METER OUT (2.0MM ORIFICE)
    JKC8-02A2.0 PISCO FIXED ORIFICE FLOW CONTROL<BR>8MM TUBE X 1/4" BSPT MALE METER OUT (2.0MM ORIFICE)
