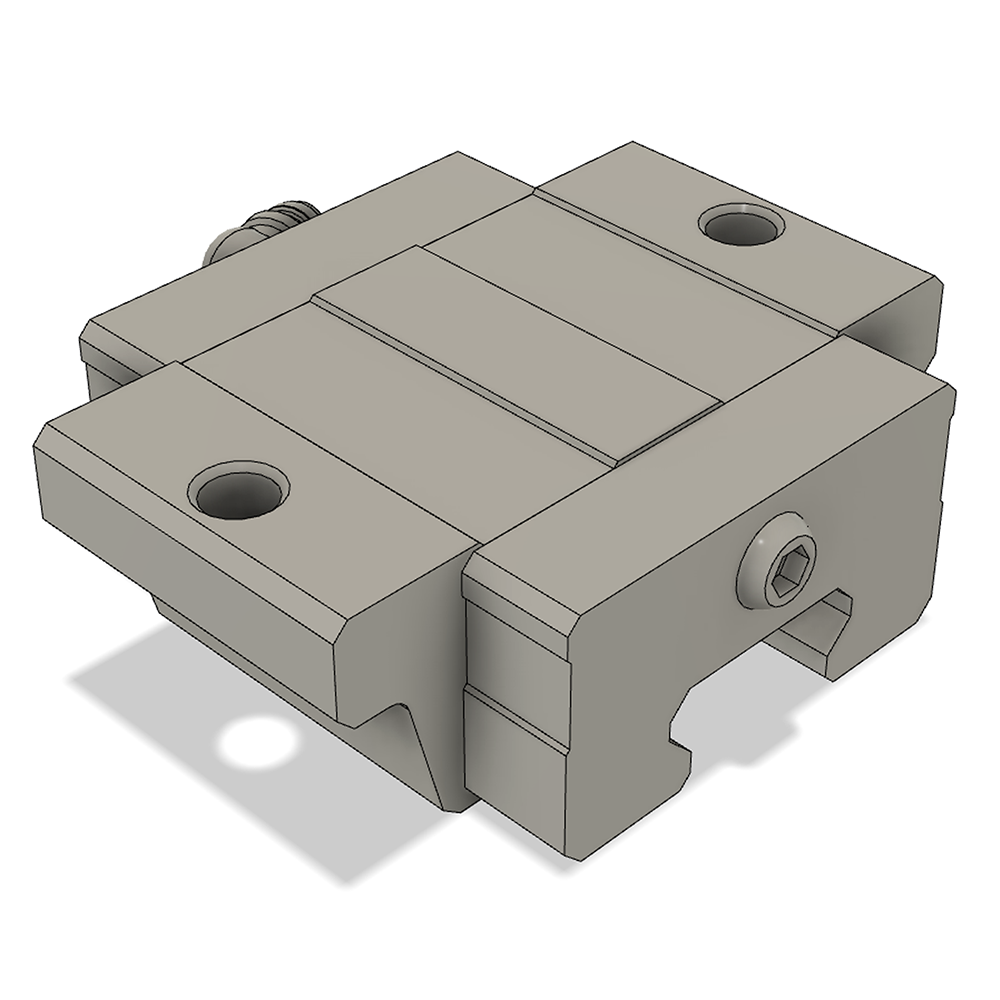

Item # LSD25BK-F2S-N-D-M6
AIRTAC LOW PROFILE RAIL BEARING
LSD 25MM SERIES, NORMAL ACCURACY WITH NO PRELOAD (D) STANDARD, BOTTOM MOUNTING FLANGE - SHORT BODY
- $36.60 / EA
- Manufacturer: AIRTAC
- UM: EA
- Weight: 0.79
AIRTAC LSD25 SERIES LINEAR RAIL SYSTEMS
THE LSD SERIES LINEAR RAIL SYSTEM IS LOW COST AND HIGH QUALITY. IT IS MADE TO INDUSTRY STANDARDS AND IS GOOD FOR LIGHT TO HEAVY LOADS. IF NOT IN STOCK, IT TYPICALLY HAS A 5-10 BUS DAY LEAD TIME. IF YOU NEED HELP CROSSING YOUR CURRENT LINEAR RAIL SYSTEM OR NEED HELP SELECTING A LINEAR RAIL SYSTEM, PLEASE CONTACT US.
| FEATURES |
|---|
| LOW COST |
| HIGH QUALITY |
| HIGH ACCURACY, LINEARITY, & PARALLELISM |
| MADE TO PRECISE MANUFACTURING STANDARDS |
| CERTIFICATIONS: ISO 9001, ISO TS16949 |
| SPECIFICATIONS | |
|---|---|
| RAIL WIDTH | |
| BLOCK STYLE | |
| BLOCK TYPE | |
| ACCURACY | |
| PRELOAD |
THE PNEUMATIC STORE IS AN AUTHORIZED, STOCKING AIRTAC DISTRIBUTOR. AIRTAC HAS A WIDE VARIETY OF FLUID POWER & LINEAR MOTION SOLUTIONS WHICH ARE GREAT FOR MANY APPLICATIONS SUCH AS:
- ROBOTIC APPLICATIONS/END OR ARM TOOLING
- MANUFACTURING EQUIPMENT
- PACKAGING EQUIPMENT
- MATERIAL HANDLING EQUIPMENT
- COMPRESSED AIR SYSTEMS/AIR COMPRESSORS
- MEDICAL EQUIPMENT
- AND MORE...

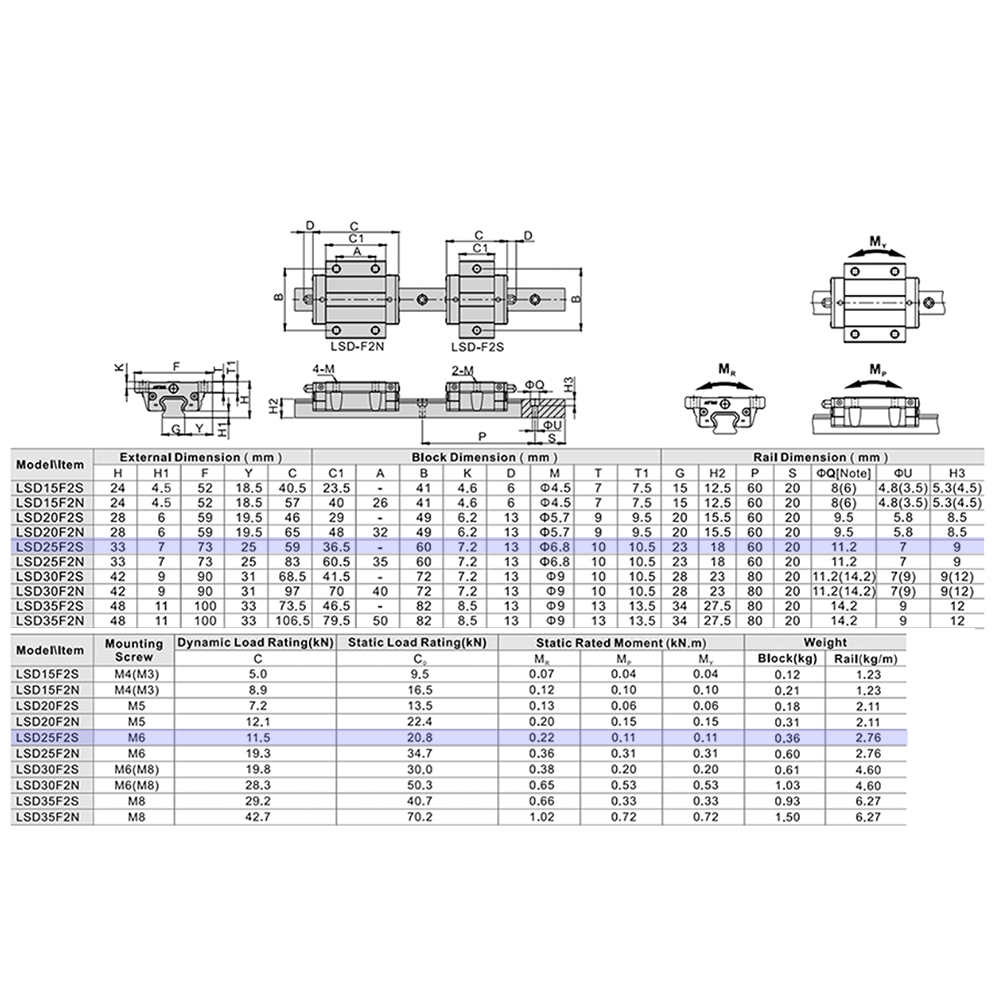

Specifications
| RAIL WIDTH | 25: 23MM RAIL |
| ACCURACY | N: NORMAL |
| BLOCK TYPE | F2: FLANGE TYPE, MOUNTING FROM BOTTOM |
| BLOCK STYLE | S: SHORT |
| PRELOAD | A: STANDARD |
Item # LSD25BK-F2S-N-D-M6
AIRTAC LOW PROFILE RAIL BEARING
LSD 25MM SERIES, NORMAL ACCURACY WITH NO PRELOAD (D) STANDARD, BOTTOM MOUNTING FLANGE - SHORT BODY
Documents
