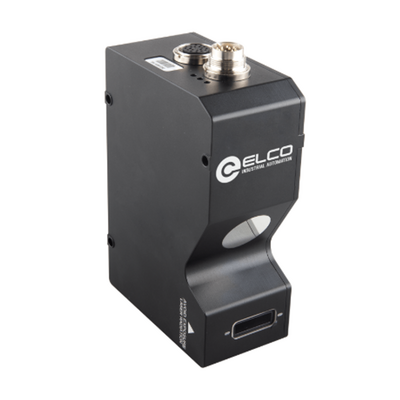

ELCO LVM24 SERIES, 3D LASER PROFILE SENSOR HAS AN INTEGRATED CPU WITHOUT ADDITIONAL CONTROLLER AND UP TO 8 SENSORS WITH C800 SWITCH POSSIBLE.

• 48 TO 83.1MM OPERATING RANGE
• 36.1 TO 52MM FIELD OF VIEW
• 3200 DATA POINTS
• 1500 TO 20000HZ SCAN RATE

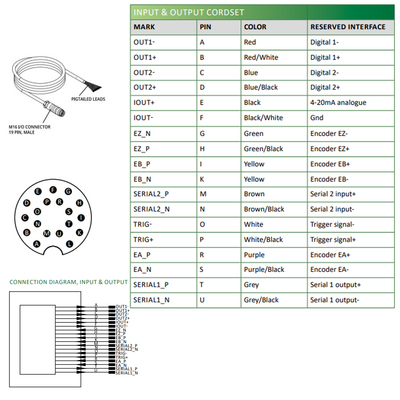

• COMMUNICATION PROTOCOL: ENCODER TRIGGER/2DO/RS485, PROFINET/MODBUSTCP
• 24 TO 48 VDC
• 0 TO 50 DEGREES C AMBIENT TEMPERATURE
• IP67 SAFETY RATING

MACHINE VISION ADDS “EYES” TO MANUFACTURING—ENABLING AUTOMATED DETECTION, IDENTIFICATION, POSITIONING AND MEASUREMENT.

A TYPICAL SYSTEM ACQUIRES IMAGES VIA CMOS/CCD INDUSTRIAL CAMERAS, PERFORMS PRE PROCESSING, EXTRACTS FEATURES (SHAPE, CONTRAST, COLOR, CODE, DEPTH) AND APPLIES ALGORITHMS TO CLASSIFY OR MEASURE TARGETS. DECISION RESULTS ARE TRANSMITTED TO CONTROLLERS OR ROBOTS, TRIGGERING PRECISE, REPEATABLE ACTIONS WITHOUT HUMAN INTERVENTION.

3D VISION, ALSO KNOWN AS THREE-DIMENSIONAL VISION OR STEREOSCOPIC VISION, IS A MULTIDISCIPLINARY TECHNOLOGY THAT COMBINES COMPUTATIONAL GRAPHICS, COMPUTER VISION, AND ARTIFICIAL INTELLIGENCE. IT COLLECTS THE THREE-DIMENSIONAL COORDINATE INFORMATION OF EACH POINT IN THE FIELD OF VIEW THROUGH THE 3D CAMERA, AND OBTAINS THE THREE-DIMENSIONAL IMAGE THROUGH THE ALGORITHM RESTORATION. COMPARED WITH TRADITIONAL 2D IMAGING TECHNOLOGY, 3D VISION TECHNOLOGY IS MORE STABLE, MORE EXPERIENTIAL, AND MORE SECURE.
