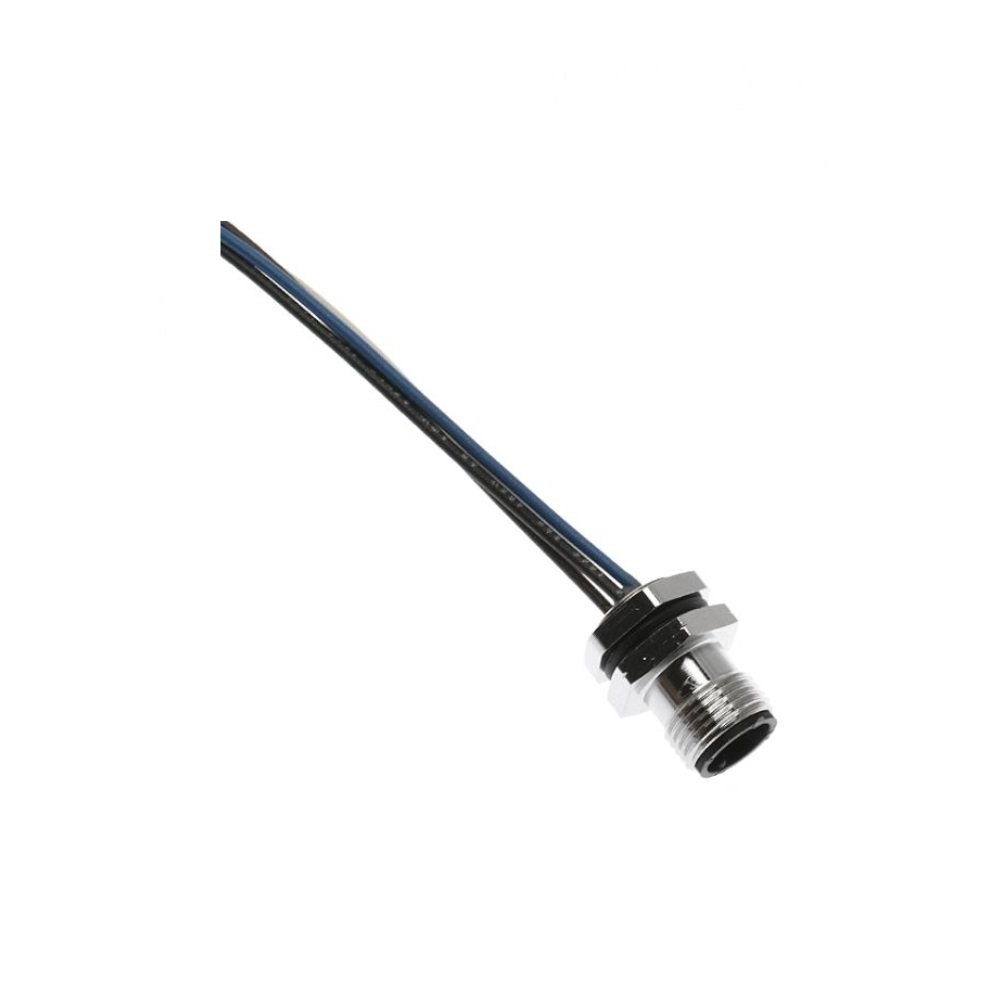

Item # MDC-4MR-PG9
MENCOM CIRCULAR CONNECTOR
4 PIN M12 MALE STR FM 1' 22AWG PG9 THR 300VAC/DC
Click image to enlarge
Item # MDC-4MR-PG9
MENCOM CIRCULAR CONNECTOR
4 PIN M12 MALE STR FM 1' 22AWG PG9 THR 300VAC/DC
- UM : EA
NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM
Specifications
| SERIES | RECEPTICAL |
| TYPE | FRONT MOUNT |
| NUMBER OF PINS | 4 |
| MALE / FEMALE | MALE |
| STRAIGHT / ELBOW | STRAIGHT |
| CONNECTION TYPE / LENGTH | PG9 MALE THREAD / 1 FOOT |
| GAUGE | 22 AWG |
| VOLTAGE | 300VAC/DC |
| CABLE MATERIAL / COLOR | N/A |
| KEYWAY | A CODE |
| SPECIAL OPTIONS | NONE |

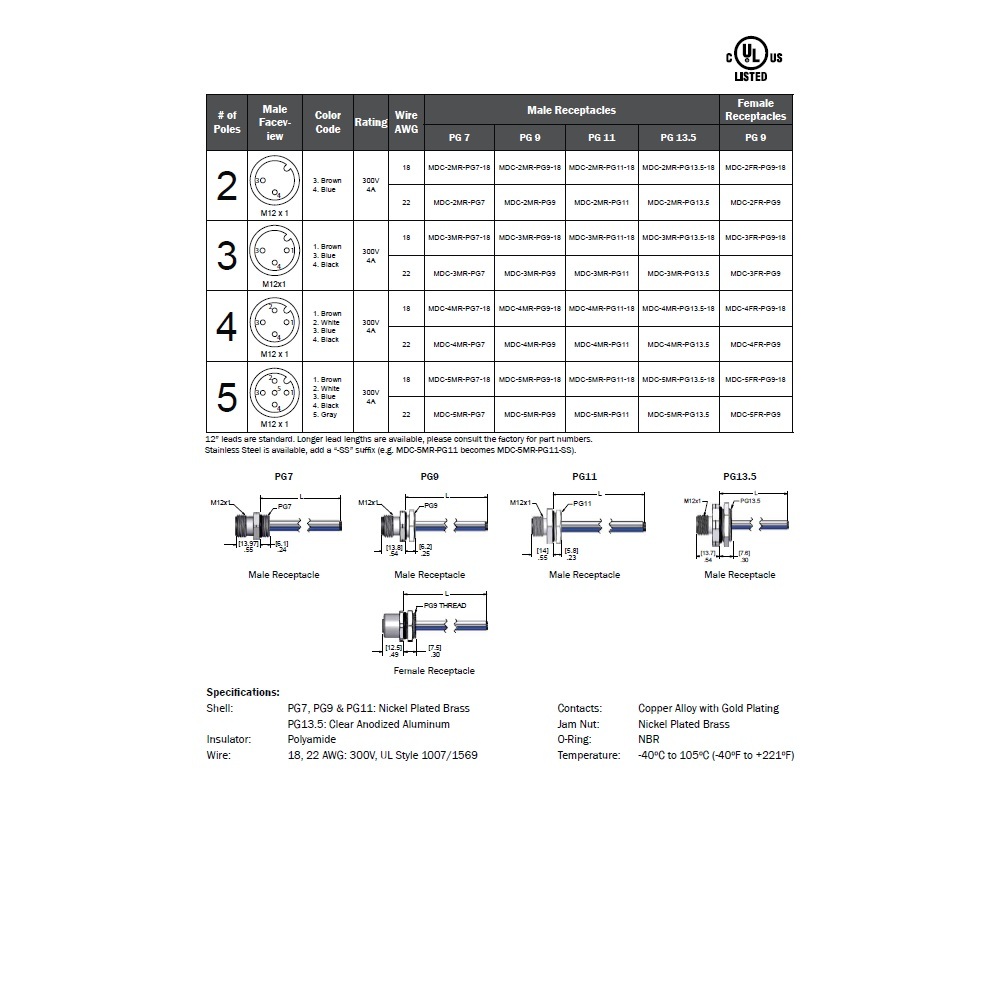

Documents
×
